Lenco Trim Tabs
Lenco Marine Trim Tabs and Accessories

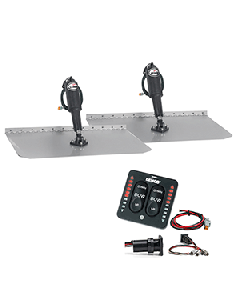

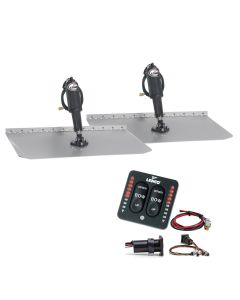

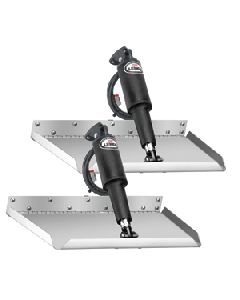

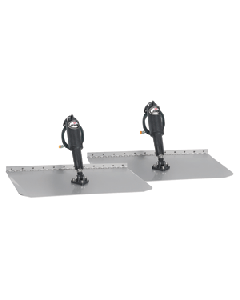

Standard Electric Trim Tab Kit
Lenco trim tabs makes your boat ride smoother, drier, faster and with increased safety. Lenco's ballscrew design is reliable, powerful, and features an instant response which makes it very user friendly.
Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Blades are constructed of 12 guage, 304 stainless steel with a 5/8" flared trailing edge. Minimum transom height 14".
Kit Includes
Waterproof plug and play Deutsch connectors

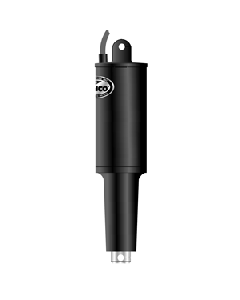

12 -volt actuators (2) with 6 foot leads
2 stainless steel trim tab planes-12 gauge
20' actuator extension harnesses (2) with Deutsch connectors
All stainless steel mounting hardware
--------------------------------------------------------------------------------------------

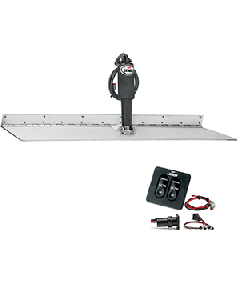

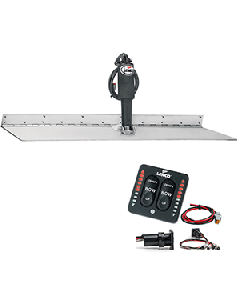

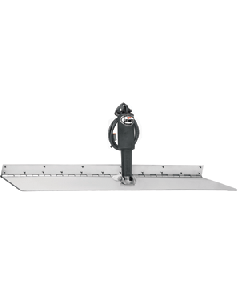

Edge Mount Electric Trim Tab Kit
Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Blades are 304 stainless steel with 1" turned up edges and an 85¡ inside taper. Edge mount tabs are space savers. The actuators mount at the trailing edge of the blades, requiring less transom height than the standard mount tabs. Min transom height 9" long models - 13.5", 12" long models 11".
Kit Includes
12-volt actuators (2) with 6' leads and Deutsch connectors
20' actuator extension harnesses (2) with Deutsch connectors
Stainless Steel trim tab blades, 12 gauge (2)
Stainless Steel mounting hardware
--------------------------------------------------------------------------------------------

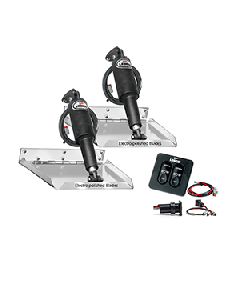

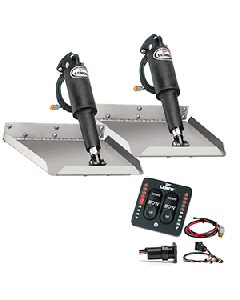

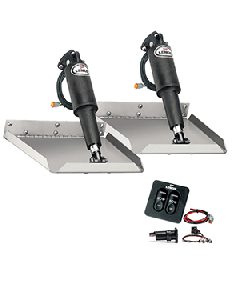

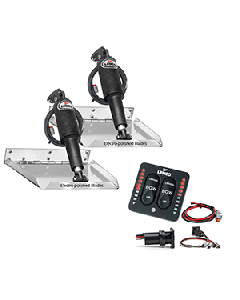

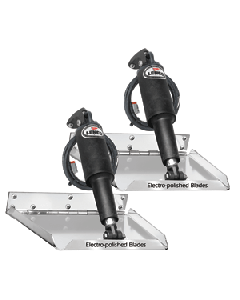

Standard Performance Trim Tabs
Fully submersible precise-control electric actuators. All Plug & Play Deutsch connections Blades are constructed of 12-gauge Electro-Polished 304 stainless steel with 1" turned up edges (the 16x12 and 18x14 blades have an 85º inside taper) and come with 1/4" diameter stainless steel hinge pins and stainless steel mounting screws. Minimum transom height 9"L models 13.5". 12" and 1longer models - 11".
Kit Includes
12-volt actuators (2) with 6' leads and Deutsch connectors
20' actuator extension harnesses (2) with Deutsch connectors
Stainless Steel trim tab blades, 12 gauge (2)
Stainless Steel mounting hardware
--------------------------------------------------------------------------------------------

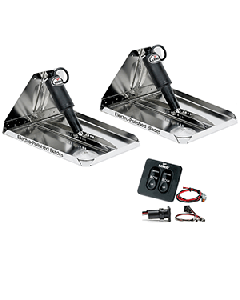

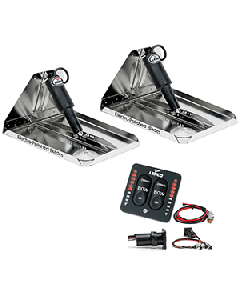

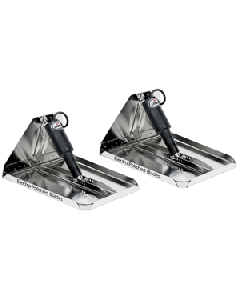

High Performance Trim Tabs
Radiused blades give maximum clearance for multiple outboard applications and reduces cavitation to the prop. The stylish design gives maximum performance and is built for extreme duty applications. Extreme duty actuators with 3/8" stainless steel bolts, 6-foot leads and Deutsch connectors. Min. transom height 10.5".
Kit Includes
7-gauge flat-304 electro-polished stainless steel blades with 3-3/4" sacrificial anodes
Full transom back plate with adjustable C-channel and 3/8" stainless steel bolts and 3/8" stainless steel hinge pins
Mechanical strain relief cable seal
Customer supplies mounting hardware
Actuator extension harness sold separately in lengths of 7', 14', 20', 26' and 32'
Switch Kits sold separately
--------------------------------------------------------------------------------------------
| SKU | Switch | L x W | Boat Size |
|---|---|---|---|
| Standard Mount Kit no switch | |||
| LEN-15000101 | TT9X9NS | 9" X 9" | 14'-18' |
| LEN-15001101 | TT9X12NS | 9" X 12" | 16'-25' |
| LEN-15002101 | TT9X18NS | 9" X 18" | 22'-30' |
| LEN-15007101 | TT12X12NS | 12" X 12" | 17'-30' |
| LEN-15008101 | TT12X18NS | 12" X 18" | 26'-36' |
| LEN-15011101 | TT9X36NS | 12" X 36" | 38'-69' |

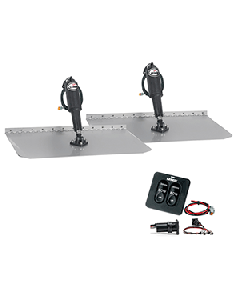

| Standard Mount Kit with Double Rocker switch | |||
| LEN-15101104 | 9" X 12" | 16'-25' | |
| LEN-15103104 | 12" X 12" | 17'-30' | |
| Standard Mount Kit with Standard Tactile Switch | |||
| LEN-15104102 | 9" X 12" | 16'-25' | |
| LEN-15105102 | 12" X 12" | 17'-30' | |
| Switch Kits: | |||
| LEN-10222211 | Double Rocker Switch | ||
| LEN-15069001 | Standard Tactile Switch | ||
| LEN-15070001 | LED Indicator Switch | ||
| Replacement Blades | |||
| LEN-20149001 | 304 S.S. 12 Gauge | 12" X 12" | |
| -------------------------------------------- | --------------------------------- | ------------ | ---------------- |
| EDGE MOUNT TRIM TABS | |||
| Kits without a switch: | Use Switch: | ||
| LEN-15015101 | TT12X9ENS | 12" X 9" | 14'-18' |
| LEN-15016101 | TT12X12ENS | 12" X 12" | 17'-30' |
| LEN-15017101 | TT12X18ENS | 12" X 18" | 26'-36' |
| Kits with Double Rocker Switch | |||
| LEN-1510204 | |||
| Kits with Stndrd Tactile Switch | |||
| LEN-15106102 | |||
| Switch Kits | |||
| LEN-10222211 | Double Rocker Switch | ||
| LEN-15069001 | Standard Tactile Switch | ||
| LEN-15070001 | LED Indicator Switch | ||
| -------------------------------------------- | --------------------------------- | ------------ | ---------------- |
| Standard Performance Trim Tabs | |||
| Does not include switch | Use Switch: | ||
| LEN-15037101 | RT12X12NS | 12" X 12" | 18'-32' |
| LEN-15039101 | RT16X12NS | 16" X 12" | 20'-36' |
| -------------------------------------------- | ---------------------------------- | ------------ | ---------------- |
| High Performance Trim Tabs (does not include switch) | Use Switch: | ||
| LEN-15048101 | LEN-15070001 | 14"x 12" | 16'-32' |
