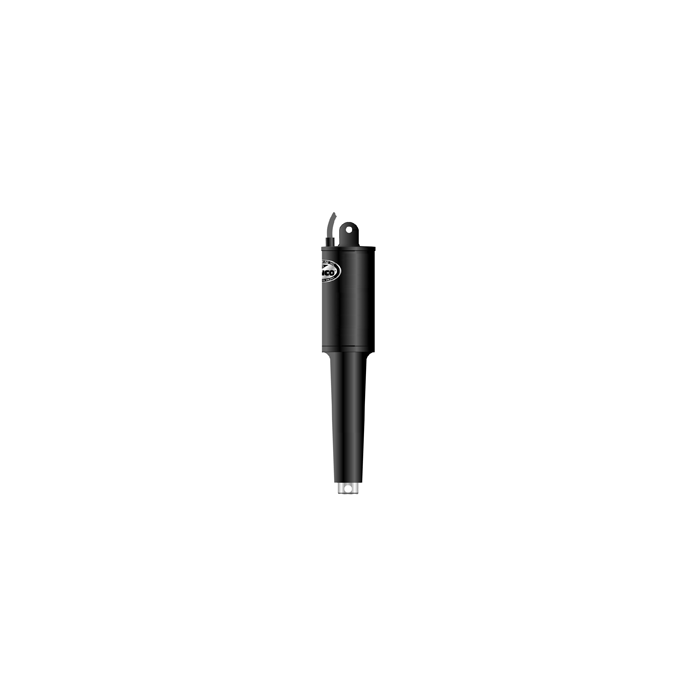

Lenco 102XD Extreme Duty Actuator - 24v - 4 1/4" Stroke - 5/16" Hardware 15067-001

102 XD Actuator

Used in custom 24V OEM trim tab kits
5/16" (.79 cm) mounting hardware
Stroke: 4-1/4" (10.8 cm)
Length overall: 12-7/8" (32.70 cm)
Length pin to pin: 12-1/4" (31.11 cm)
Diameter (upper housing): 2-1/2" (6.35 cm)
Mounting hardware: 5/16" (.79 cm) or Delrin Pin (Part #15087-001)

Part #
#15067-001 (102-2XD-3) 24 Volt w/6' (1.83m) leads with Deutsch connectors and mounting hardware(replacement length)

• Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing

• Corrosion proof Vandar mounts

• Stainless steel ram won't flex, even under extreme loads

• Double O-ring for maximum protectionear resistance, and high strength for long life

• Tough, high-torque motor easily transfers 750 lbs

• Available in 12- or 24-volt motor. Kit includes 12-volt motor
