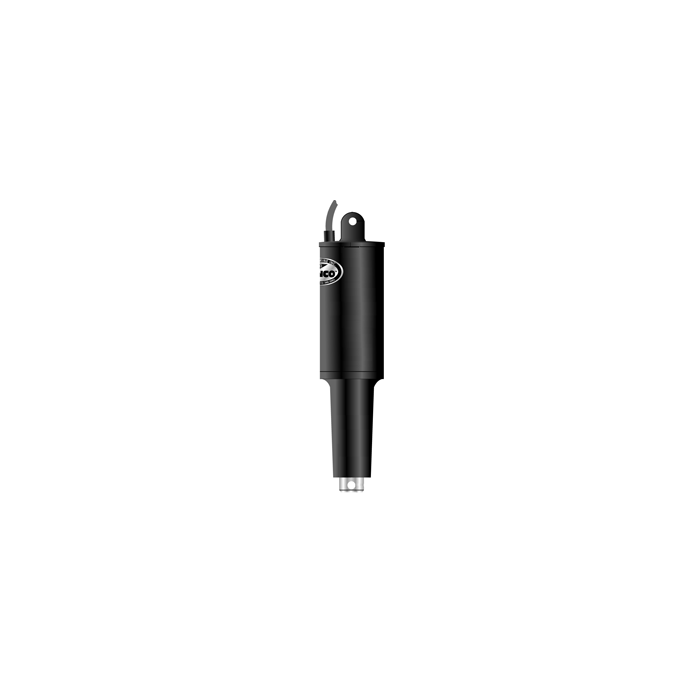

Lenco 101XD Extreme Duty Actuator - 24v - 2 1/4" Stroke - 3/8" Hardware 15063-001

101 XD Extreme Duty Actuator

Part # (Superseded #)
(101 XD-15) 24 Volt w/6" (1.83 m) leads with Deutsch connectors, 3/8" (.95 cm) mounting hardware, solid stainless steel billet end
Stroke: 2-1/4" (5.72 cm)
Length overall: 11-3/8" (28.89 cm)
Length pin to pin: 10-3/4" (27.31)
Diameter (upper housing): 2-1/2" (6.35 cm)

• Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing

• Corrosion proof Vandar mounts

• Stainless steel ram won"t flex, even under extreme loads

• Double O-ring for maximum protection

• Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so there"s no need for complicated limit switches and clutches

• Self-locking ballscrew locks into position and will not drift

• Precision molded, powdered metal, high alloy gears provide high accuracy, high wear resistance, and high strength for long life

• Tough, high-torque motor easily transfers 750 lbs

• High-impact, ultraviolet resistant nylon 66, 50% glass fiber reinforced thermoplastic housing

• Corrosion proof Vandar cap and mount, stands up to severe loads
