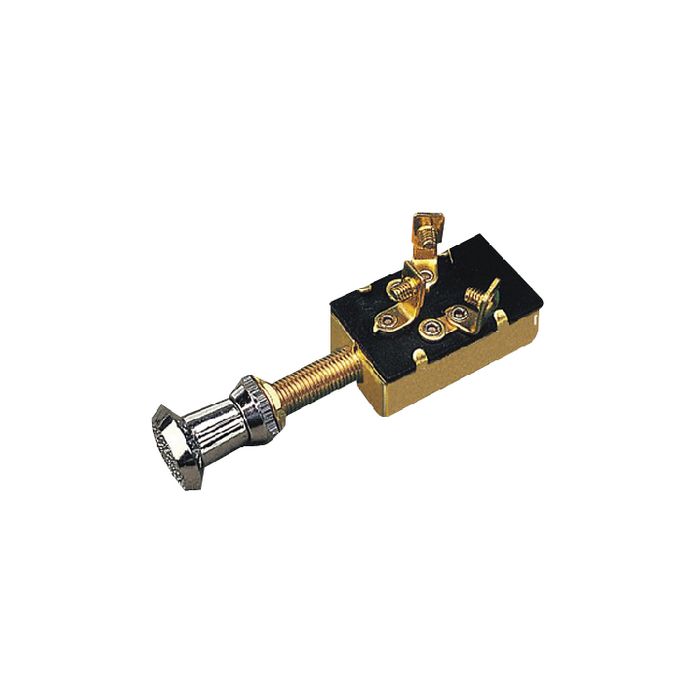

Sea Dog Brass Three Position Switch(On SDG-4204101

Sea-Dog Brass Three Position Switch(On SDG-4204101

One circuit, normally off, three position: Off/On/On. When pulled to the first position, the first circuit is activated. At the second position, both the first and the second circuit are both activated. Ideal for lighting such as cabin or running lights. Stamped brass. Mounting stem 3/8'' dia. x 1'' long. 15 amps @ 12 VDC.

Positions: Off/On/On
Type: SPDT
Terminals: 3 Screw

SKU: SDG-4204101
Category: Electrical > Push-Pull Switches
