Sea-Dog Line 3 Position Magneto-Style Ignition/Starter Switch, Brass, 420351-1

Name: Sea-Dog Line 3 Position Magneto-Style Ignition/Starter Switch, Brass, 420351-1
Brand: SEA-DOG LINE
SKU: JMS142353
Price: 48.95 USD
Availability: InStock

Part # 420351-1 JMS SKU JMS142353 UPC 035514423618

$48.95

10 in stock

Ships within 1–2 days

Need several, or a formal quote? Send us a message.

Ships from U.S. warehouses. Shipping cost is shown at checkout.
30-day returns on new, unused items in original packaging. Return policy
Not sure it fits? Call (832) 308-3163, Mon–Thu 9–5, Fri 9–2 Central.
Secure checkout with all major credit cards.

Government customer? This item is on our GSA Schedule. Sign in to the GSA Customer Area for contract pricing, PDF quotes and SmartPay checkout.

Description

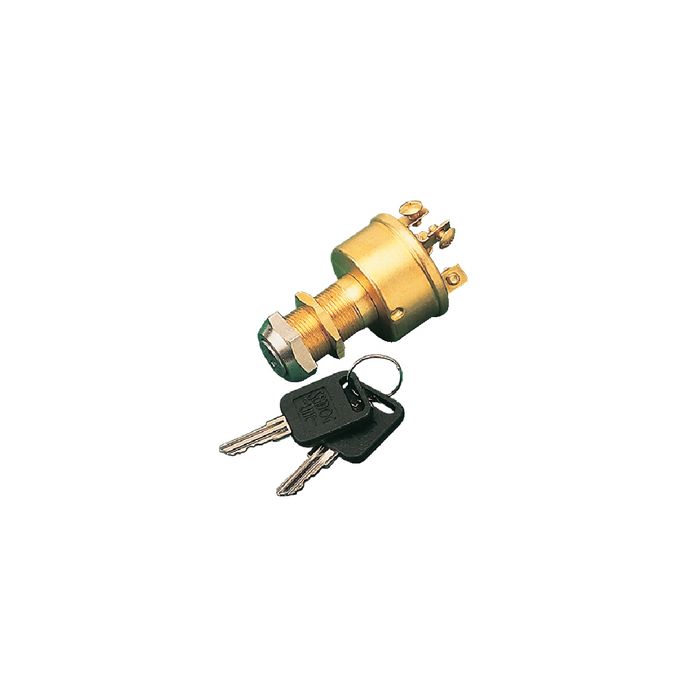

The Sea-Dog Line Three Position Magneto-Style Ignition Switch is constructed of stamped brass and provides off, ignition and start functions. The ignition (accessory) circuit is not activated in the solenoid (start) position. Two keys are included.

Features

Stamped brass construction
Off, ignition and start positions
Ignition (accessory) circuit is not activated in the solenoid (start) position
Long shaft, 13/16 in diameter, for panels up to 1-1/8 in thick
Five screw terminal electrical connection
Includes two keys

Specifications

Material: Stamped brass
Positions: 3
Shaft: Long, 13/16 in diameter
Maximum panel thickness: 1-1/8 in
Terminals: 5 Screw
Boot: No
Ignition rating: 15A @ 12VDC
Solenoid rating: 30A @ 12VDC
Keys: 2 included
Manufacturer part number: 420351-1
