Sea-Dog Line 3 Position Magneto Style Ignition/Starter Switch, 420383-1

Name: Sea-Dog Line 3 Position Magneto Style Ignition/Starter Switch, 420383-1
Brand: SEA-DOG LINE
SKU: JMS141611
Price: 46.47 USD
Availability: InStock

Part # 420383-1 JMS SKU JMS141611 UPC 035514423700

$46.47

52 in stock

Ships within 1–2 days

Need several, or a formal quote? Send us a message.

Ships from U.S. warehouses. Shipping cost is shown at checkout.
30-day returns on new, unused items in original packaging. Return policy
Not sure it fits? Call (832) 308-3163, Mon–Thu 9–5, Fri 9–2 Central.
Secure checkout with all major credit cards.

Government customer? This item is on our GSA Schedule. Sign in to the GSA Customer Area for contract pricing, PDF quotes and SmartPay checkout.

Description

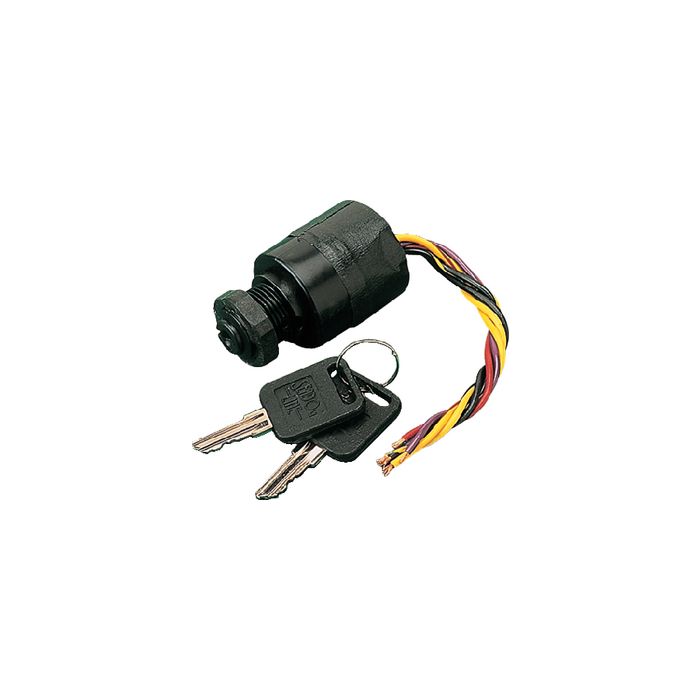

This three position magneto style ignition switch is constructed of polypropylene and handles off, ignition, start and choke functions. It has a 13/16 in diameter short shaft for a maximum panel thickness of 5/8 in and includes two keys.

Features

Polypropylene construction
Off, ignition, start and choke positions
Push to choke
Six wire electrical connection
Includes two keys

Specifications

Material: Polypropylene
Functions: Off, Ignition, Start, Choke
Shaft: 13/16 in diameter, short
Maximum panel thickness: 5/8 in
Terminals: 6 wire
Ignition rating: 15A @ 12VDC
Solenoid rating: 30A @ 12VDC
Choke rating: 7A @ 12VDC
Boot: No
Keys included: 2
Manufacturer part number: 420383-1
