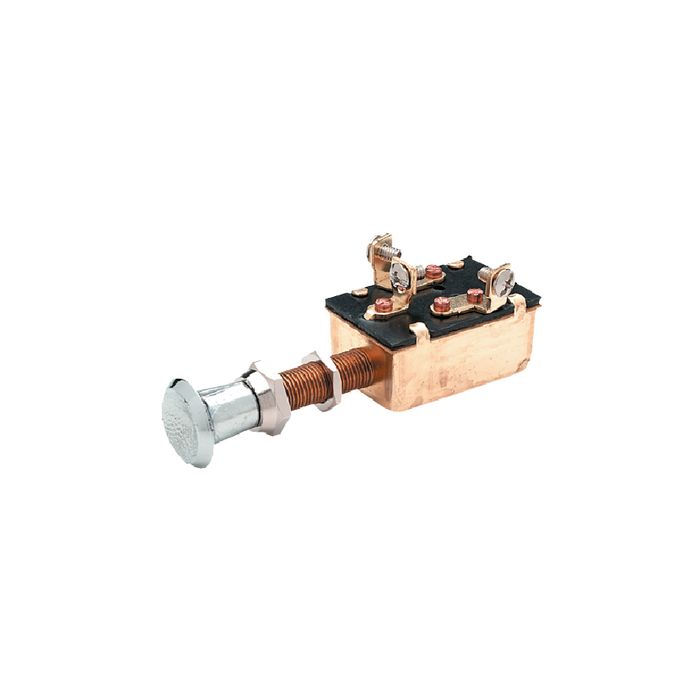

Seachoice Push-Pull Switch (Screw)-3 Po SCP-11911

Seachoice Push-Pull Switch (Screw)-3 Po SCP-11911

Heavy Duty. All push-pull switches have mounting stems: 1-1/4" L x 3/8" dia.

11841: 2 Position: Off - On. One circuit. Normally "Off" S.P.S.T. Non-corrosive construction. Plasticized body sealed against moisture and dirt. Two 18 gauge insulated copper wire leads, 12" L. Chrome plated brass knob and face nut.

11901: 2 Position: Off - On. Chrome plated brass face nut, washer and back-up nut. Chrome plated plastic knob.Stainless steel springs.

11911: 3 Position: Off - On #1 - On On Both #1, #2. First "On" energizes one circuit. Second "On" energizes both circuits. Brass hex back-up nut, brass washer, chrome plated brass face nut. Chrome plated plastic knob.

11921: 3 Position: Off - On #1 - On #2. Two separate circuits. Suited for anchor lights and a separate circuit for running lights. Brass hex back-up nut, brass washer. Chrome plated plastic knob.

Positions: Off - On - On Both #1
Rating: 25A @ 6V DC - 15A @ 12V DC
Panel Thickness: 1"

SKU: SCP-11911
Category: Electrical > Push-Pull Switches
