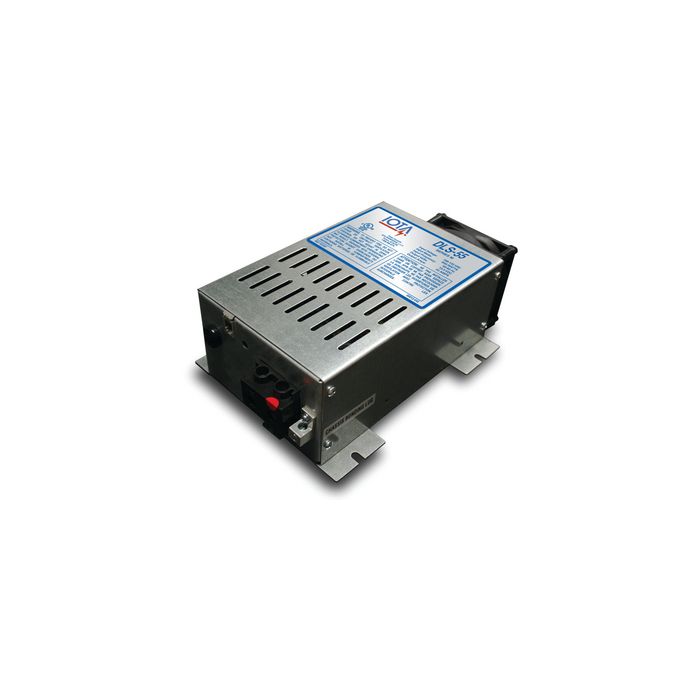

Iota Power Converter Battery Charger, 55 Amp, DLS-55

The Iota DLS-55 Power Converter/Battery Charger converts nominal 108-132 VAC input to 13.4 VDC output for both DC load operation and 12V battery charging. As a power supply, it can operate a nominal 12 VDC load up to 55 amps.

Features

• Tightly controlled regulation when used as a power supply for a nominal 12 VDC load
• Delivers its full-rated current when battery capacity falls sufficiently low
• Voltage is set to deliver maximum current for the necessary period to minimize stress on the battery caused by heating of its cells
• Automatically drops the current as the battery nears full capacity, providing a float-charge to prevent self-discharge of the cells

Specifications

• Input voltage: 108-132 VAC
• Input frequency: 50-60 Hz
• Output voltage: 13.4 VDC
• Output amperage: 55 Amps
• Manufacturer part number: DLS-55
