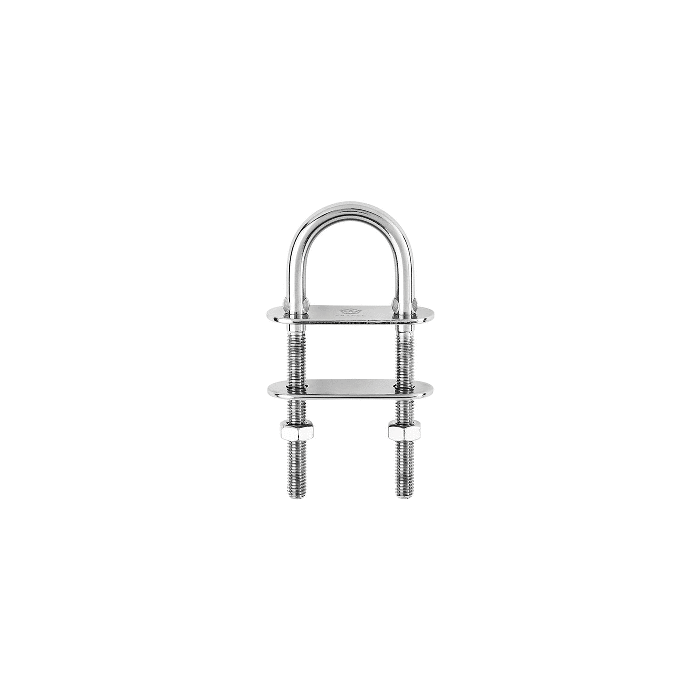

Wichard U-Bolt Pad Eye - 6mm Diameter - 15/64" - 70mm Length - 2-3/4"

U-Bolt Pad Eye - 6mm Diameter - 15/64" - 70mm Length - 2-3/4"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 7.5 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 6610 / (kg) 3000
• Weight: (lb) 0.132 / (g) 60

Dimensions:

• A: (inch) 1 17/64" / (mm) 32
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 1 3/8" / (mm) 35
• D diameter: (inch) 15/64" / (mm) 6
• Length: (inch) 2 3/4" / (mm) 70

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
