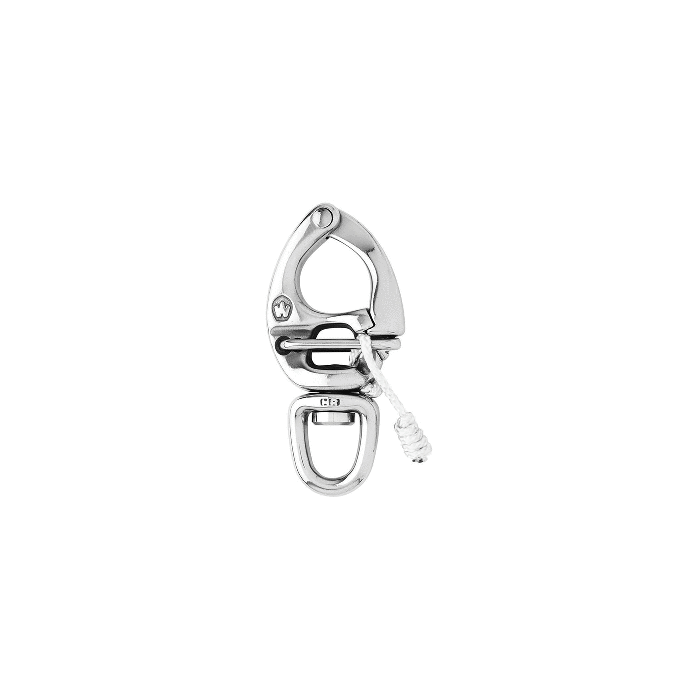

Wichard HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"

Name: Wichard HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"
Brand: Wichard Marine
SKU: JMS158814
Price: 192.26 USD
Availability: InStock

Part # 2674 JMS SKU JMS158814

$192.26

2 in stock

Ships within 1–2 days

Need several, or a formal quote? Send us a message.

Ships from U.S. warehouses. Shipping cost is shown at checkout.
30-day returns on new, unused items in original packaging. Return policy
Not sure it fits? Call (832) 308-3163, Mon–Thu 9–5, Fri 9–2 Central.
Secure checkout with all major credit cards.

Government customer? This item is on our GSA Schedule. Sign in to the GSA Customer Area for contract pricing, PDF quotes and SmartPay checkout.

Description

HR Quick Release Snap Shackle With Swivel Eye - 80mm Length - 3-5/32"

Features:

HR forged (17.4 PH) quick-release snap shackle with swivel eye
The opening is made by pulling the lanyard
Perfect to attach one sheet or halyard
Outstanding working and breaking loads
Free rotation of the snap shackle thanks to the swivel

Applications:

For spinnaker operations
Perfect for spinnaker sheets and halyards

Specifications:

Materials: HR 17.4 PH stainless steel grade
Working load: (lb) 2820 / (kg) 1280
Breaking load: (lb) 5070 / (kg) 2300
Weight: (lb) 0.194 / (g) 88

Dimensions:

A: (inch) 5/8" / (mm) 16
B: (inch) 15/32" / (mm) 12
Length: (inch) 3 5/32" / (mm) 80

Caption:

Working Load (WL): For nautical applications
Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
High Resistance (HR)

*Sold as an Individual
