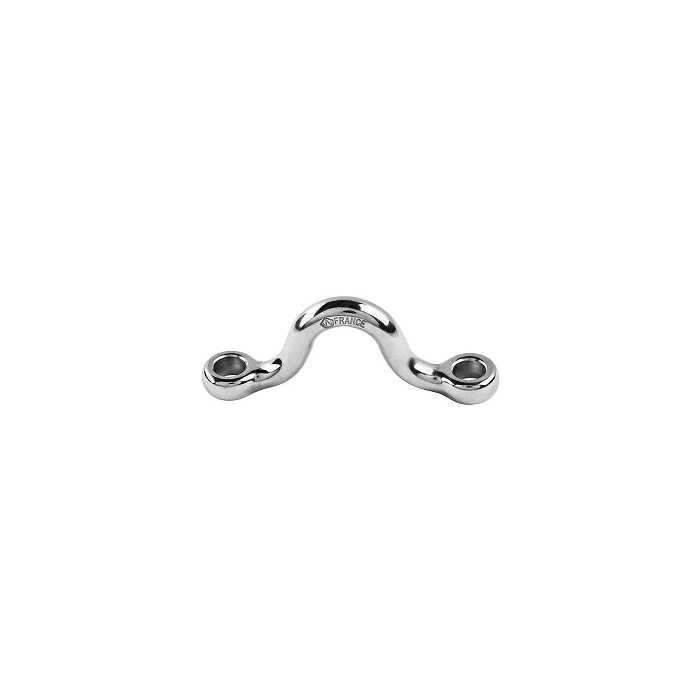

Wichard Eye Strap - 8mm Diameter - 5/16" - 60mm Spacing - 2-23/64"

Eye Strap - 8mm Diameter - 5/16" - 60mm Spacing - 2-23/64"

Features:

• Complete range of drop-forged saddles with high-quality stainless steel (316L)
• Outstanding strength
• The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

• Fastening applications
• Attachment of straps & cordage

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 7710 / (kg) 3500
• Weight: (lb) 0.084 / (g) 38

Dimensions:

• A: (inch) 5/8" / (mm) 16
• B: (inch) 53/64" / (mm) 21
• D diameter: (inch) 5/16" / (mm) 8
• E: (inch) 2 23/64" / (mm) 60

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
