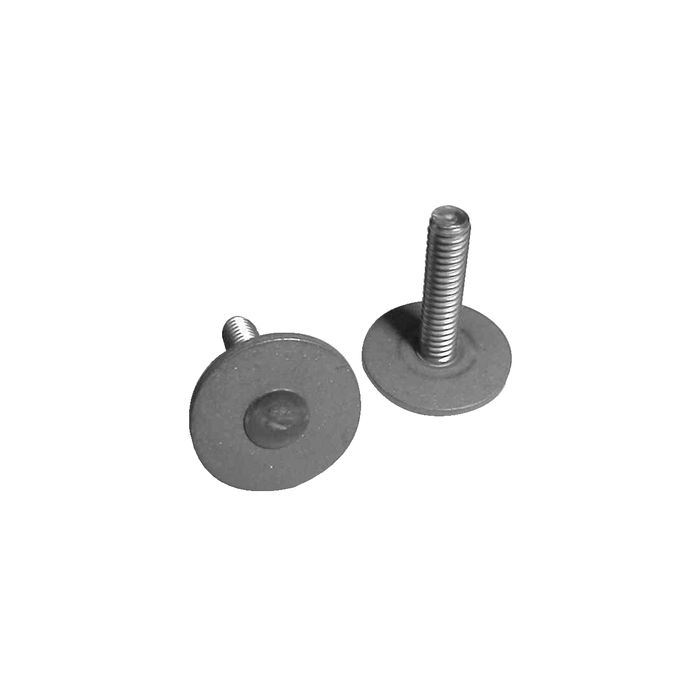

Weld Mount Stainless Steel Panel Stud
$14.01
Out of stock
SKU
JMS205993
Weld Mount Stainless Steel Panel Stud
Weld Mount Stainless Steel Panel Stud
PS62-832: Used for securing a wide range of wire clamps and other small components to composite surfaces. All Weld Mount studs can be bonded on the under or upper side of the base.
1024: Just like the 1420 studs above but with a smaller threaded stud inserted into the base. These studs are ideal for mounting wire clamps and securing items which require a smaller stud diameter
1420: Mounts to virtually any surface using our AT-4010 acrylic adhesive. This Is a structural part with Tensile Strength: 500 Lbs., Shear Strength: 650 lbs. Use for hanging panels, battery chargers, cabinets, through deck mounts, upholstery bolsters and many other uses.
| SKU | Base | Thread | Max Torque | Length |
| WEL-83212 | 1/16" | 11902 | 45 inch/lbs | 3/4" |
| WEL-102412 | 1-1/4" | 41571 | 60 inch/lbs | 3/4" |
| WEL-102420 | 1-1/4" | 41571 | 60 inch/lbs | 1-1/4" |
| WEL-102424 | 1-1/4" | 41571 | 60 inch/lbs | 1-1/2" |
| WEL-102436 | 1/1/4" | 41571 | 60 inch/lbs | 2-1/4" |
| WEL-142012 | 1-1/4" | 43834 | 90 inch/lbs | 3/4" |
| WEL-142016 | 1-1/4" | 43834 | 90 inch/lbs | 1" |
| WEL-142024 | 1-1/4" | 43834 | 90 inch/lbs | 1-1/2" |
| WEL-142028 | 1-1/4" | 43834 | 90 inch/lbs | 1-3/4" |
| WEL-142032 | 1-1/4" | 43834 | 90 inch/lbs | 2" |
| WEL-142040 | 1-1/4" | 43834 | 90 inch/lbs | 2-1/2" |
| WEL-3816325 | 2" | 42437 | 90 inch/lbs | 2" |
| WEL-83224 | 1/16" | 11902 | 45 inch/lbs | 1-1/2" |
Category: Hardware/Cable and Wire Management/Cable Ties
| Manufacturer Part Number | 83212 |
|---|---|
| Manufacturer | Weld Mount |
