Uflex Hydraulic Steering Helm, 1.7 ci, UP28FM
$1,053.39
Uflex Hydraulic Steering Helm, 2.0 ci, UP33T-X52
$1,080.89
2 in stock
Ships within 1–2 days
Mount Type: Front Mount Tilt
Need several, or a formal quote? Send us a message.
- Ships from U.S. warehouses. Shipping cost is shown at checkout.
- 30-day returns on new, unused items in original packaging. Return policy
- Not sure it fits? Call (832) 308-3163, Mon–Thu 9–5, Fri 9–2 Central.
- Secure checkout with all major credit cards.
Government customer? This item is on our GSA Schedule. Sign in to the GSA Customer Area
for contract pricing, PDF quotes and SmartPay checkout.
Description

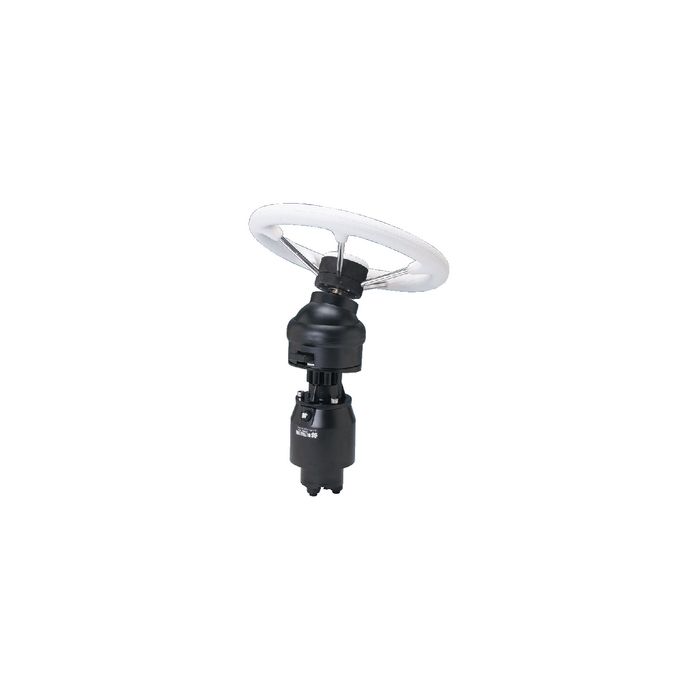

This Uflex front mount tilt hydraulic steering helm for Verado has a 2.0 ci displacement and seven pistons. The X52 tilt mechanism is included, and it replaces part number 216-UP33T.
Features
- Compact design
- Built-in lock valve for positive rudder lock
- Integral relief valve for over-pressure protection
- Compatible with Teleflex SeaStar cylinders, hoses and oil
- 3/4 in tapered stainless steel shaft
- Easily accessible lock valve and shaft seal for replacement
- Convenient front of dash fill
- Adjustable boss fittings compatible with Kit OB and Kit OBSVS hose kits and SeaStar hoses
- Tilt range of 48 degrees and five locking positions
- X52 tilt mechanism fits standard Ultraflex tilt mount rotary and rack and pinion steering helms and standard Ultraflex tilt mount hydraulic pumps, except SilverSteer and MasterDrive steering systems
Specifications
- Mount type: Front mount tilt
- Volume: 2.0 ci
- Number of pistons: 7
- Maximum wheel diameter: 16 in
- Shaft: 3/4 in tapered stainless steel
- Tilt range: 48 degrees, five locking positions
- Relief valve pressure: 1000 PSI
- Replaces part number: 216-UP33T
- Manufacturer part number: UP33T-X52
Specifications
- Brand
- Uflex
- Manufacturer part #
- UP33TX52
- JMS SKU
- JMS276477
- UPC
- 702755039235
- Shipping weight
- 15.5 lb
Shipping
Most orders ship within 1–2 days from U.S. warehouses. You'll see the shipping cost and choose a method at checkout.
Returns
Return new, unused items in original packaging within 30 days. Defective items after 30 days follow the manufacturer's warranty. Return policy
Questions
Call (832) 308-3163 or send us a message. Have your boat's make, model and year handy.
