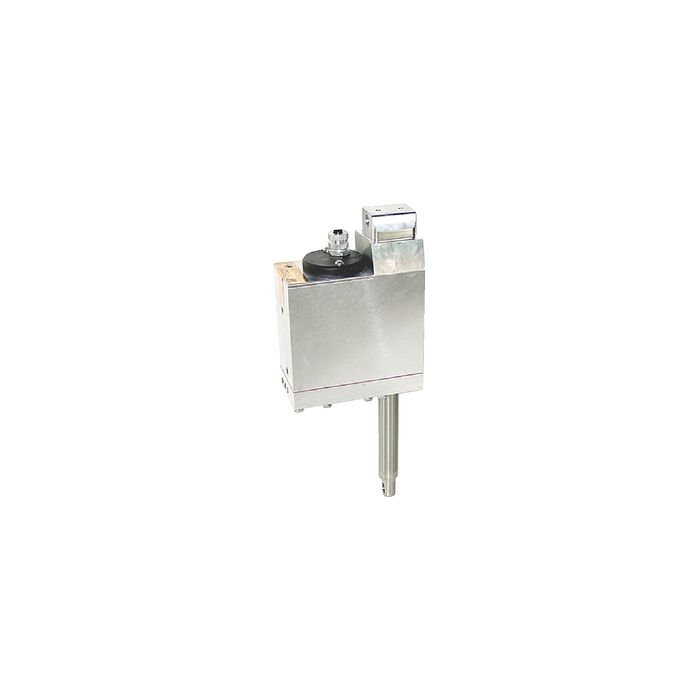

T-H Marine 7050 Hydraulic Actuator Assembly TH-CMC THM ELCT0078

T-H Marine 7050 Hydraulic Actuator Assembly TH-CMC THM ELCT0078

Hydraulic Actuators are completely self contained with their own fluid reservoir. They incorporate the pump, motor, reservoir and cylinder all in the same body. This eliminates the need for multiple hydraulic components such as hoses, pumps and cylinders. Actuator can be utilized in almost any type of environment. Made of 100% non-ferrous materials, they are totally submersible. They contain a no-leak seal and wiper that keeps dirt and water out of the working parts.
Fits:

• CMC Power-Lift hydraulic jack plates (models: 61001, 61002, 65001, 65002, 65201)


• T-H Marine Hydro-Jacker hydraulic jack plates (models: HYJ-6C-DP, HYJ-10C-DP)


• CMC Power Tilt & Trim Units (PT-35 & PT-130 models: 13001, 13002, 52100)


• ATLAS Tilt & Trim Units (models: THT-35C-DP, THT-130C-DP, THT-130CGK-DP)

SKU: THM ELCT0078
Manufacturer: T-H Marine
Category: Engine/Jack Plates/
