Shakespeare Galaxy 6.5' Broadband Antenna HS-2774-1 HS-2774-1-R

Name: Shakespeare Galaxy 6.5' Broadband Antenna HS-2774-1 HS-2774-1-R
Brand: Shakespeare
SKU: JMS175828
Price: 669.99 USD
Availability: InStock

Part # HS-2774-1-R JMS SKU JMS175828 UPC 719441170066

$669.99

10 in stock

Ships within 1–2 days

Need several, or a formal quote? Send us a message.

Ships from U.S. warehouses. Shipping cost is shown at checkout.
30-day returns on new, unused items in original packaging. Return policy
Not sure it fits? Call (832) 308-3163, Mon–Thu 9–5, Fri 9–2 Central.
Secure checkout with all major credit cards.

Description

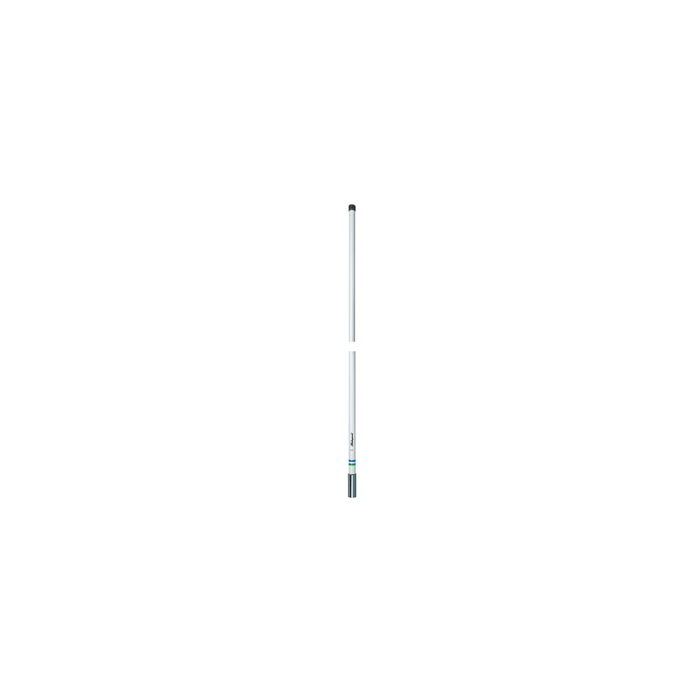

Galaxy Style HS-2774-1
6.5 ft. Broadband

136-174 MHz Broadband

The HS 2774-1 is a highly sophisticated antenna with performance maximized from 136 to 174 MHz. It will handle continuous duty at maximum input power. The self-supporting antenna is designed for military, commercial, law enforcement, and disaster preparedness. No tuning or ground plane required.

Hand soldered brass elements for maximum range and efficiency
Stainless steel ferrules, standard 1in-14 threads
Includes 20 feet of RG-8/X low-loss cable plus a PL-259 connector
Suggested mount: Use only Shakespeare Style 4187-HD for self-supporting applications. Use a Style 410-R if an upper support bracket installation is preferred.
Covers: 136-174 MHz
One section
