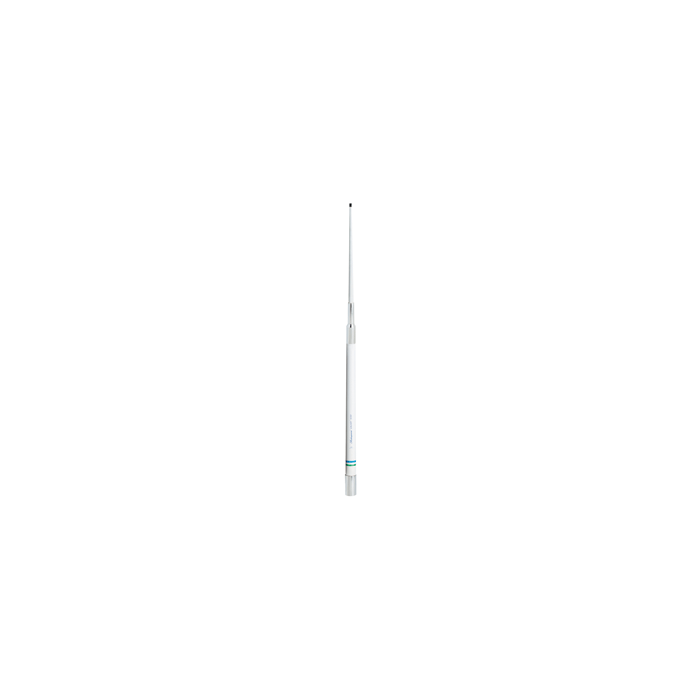

Shakespeare 5230 14' VHF Antenna 5230

Shakespeare Galaxy 5230
14" VHF 8dB Gain
5/8 wave over 1/2 wave dipole

The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.

• Brass and copper elements for maximum range and efficiency

• Stainless steel ferrule with standard 1"-14 thread

• Includes 20 feet of RG-8/X cable and a PL-259 connector

• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit

• Two sections: Base 94", Tip 74" - UPS shippable

• Shakespeare Limited Warranty: 5 years

Technical Specifications:

Frequency:	VHF Marine Band
Bandwidth:	3 MHz within 2.0:1 VSWR
SWR:	nominally 1.5:1 at 156.8 MHz
Impedance:	50 ohms
Gain:	8 dB
Max Input (Watts):	200 watts
DC Ground:	YES
Height (feet):	14
Polarization:	Vertical
