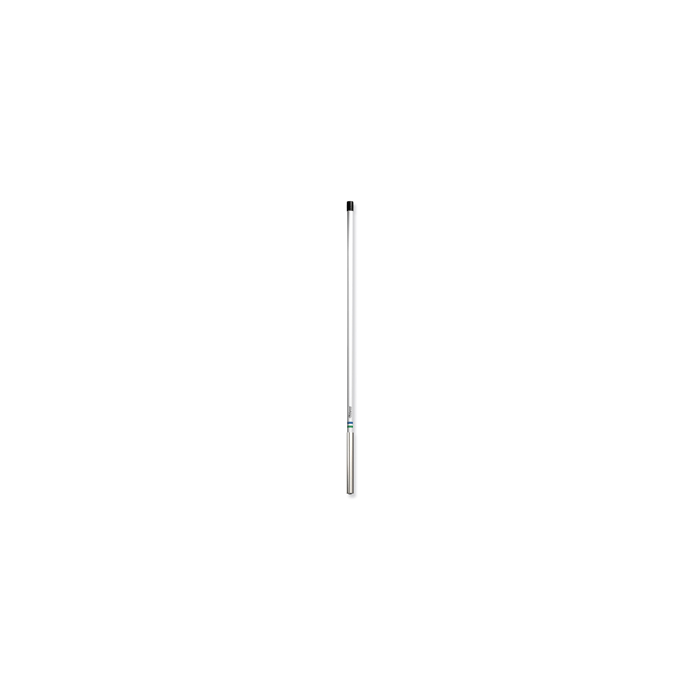

Shakespeare Broadband VHF for AIS System 396-1-AIS

Name: Shakespeare Broadband VHF for AIS System 396-1-AIS
Brand: Shakespeare
SKU: JMS175736
Price: 209.99 USD
Availability: InStock

Part # 396-1-AIS JMS SKU JMS175736 UPC 719441170585

$209.99

10 in stock

Ships within 1–2 days

Need several, or a formal quote? Send us a message.

Ships from U.S. warehouses. Shipping cost is shown at checkout.
30-day returns on new, unused items in original packaging. Return policy
Not sure it fits? Call (832) 308-3163, Mon–Thu 9–5, Fri 9–2 Central.
Secure checkout with all major credit cards.

Description

Shakespeare Style 396-1-AIS VHF Marine AIS
4' LENGTH 3dB

4' MAST MOUNT AIS ANTENNA

The 396-1-AIS has been specially designed to meet the broader bandwidth requirements of all popular AIS transceivers. Commercial-grade construction with a mast mounting sleeve.

Brass and copper elements
SO-239 connector at the base
Suggested Mount: U-Bolts included. Can be strapped to a larger mast using steel banding (not supplied)
One section
Coax cable sold separately
Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency: VHF Marine Band
Bandwidth within 2.0:1 SWR: 6.0 MHz
SWR: 1.5:1 at 156.8 MHz
Gain: 3dB
Impedance (Ohms): 50
Gain: 3dB
Max. Input (Watts): 100
DC Ground: no (will read open-circuit with ohmeter test)
Termination: SO-239 at bottom of antenna
Height (feet): 4
Polarization: Vertical
Radiation pattern: Omni-directional
