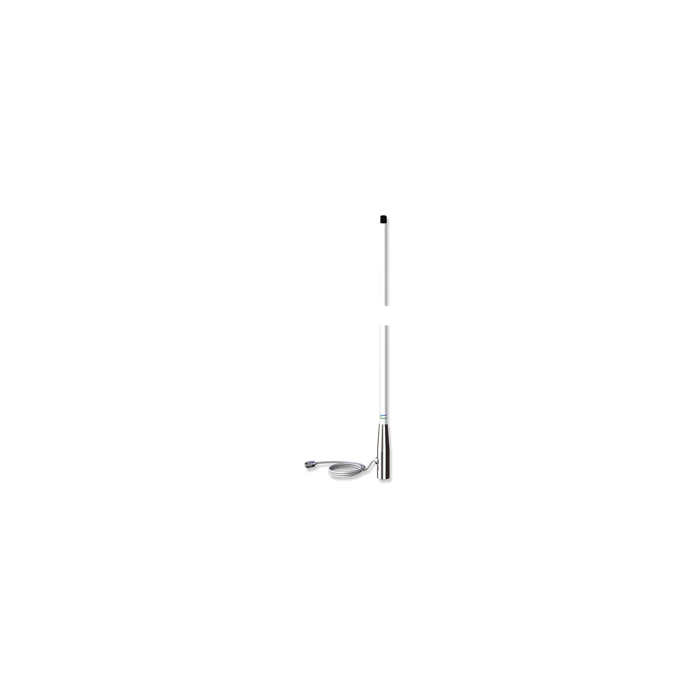

Shakespeare 396-1 5' VHF Antenna 396-1

Style 396-1 VHF 3dB

Center-fed 1/2-wave coaxial sleeve

Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.

• Brass and copper elements

• Chrome-plated brass ferrule with standard 1&qout;-14 thread

• Includes 15" RG-58 cable and a PL-259 connector

• Suggested mount: Style 4187 Ratchet Mount

• One section

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	(within 2.0:1 SWR): 5 MHz
SWR:	1.5:1 at 156.8 MHz
Impedance	(Ohms): 50
Gain:	3 dB
Max Input (Watts):	50
DC Ground:	NO
Termination:	15" RG-58 cable
Height (feet):	5
Polarization:	Vertical
Radiation pattern:	Omni-directional
