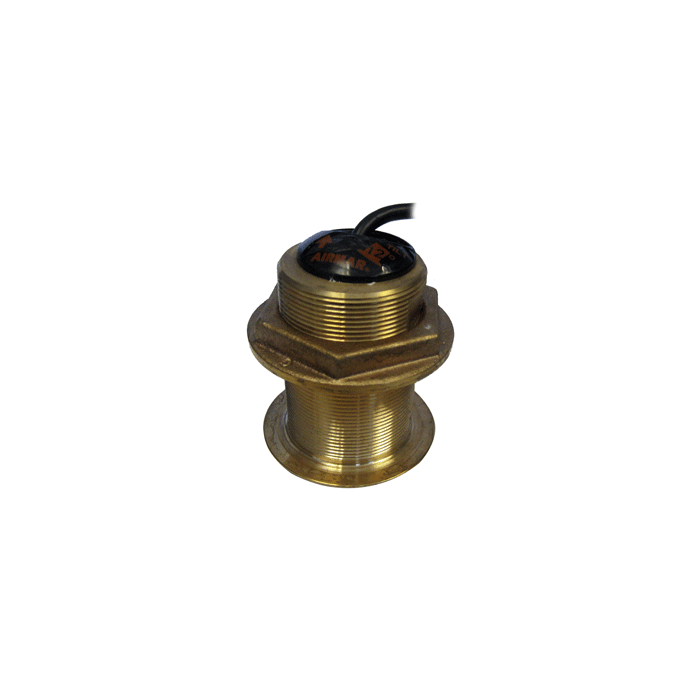

Raymarine B60-20 20 Degree Tilted Element Transducer - E Series E66085
$382.43
In stock
SKU
JMS138907
Raymarine B60-20 20 Degree Tilted Element Transducer - E Series E66085 is available to buy in increments of 1
RAYMARINE B60-20 TILTED ELEMENT DUCER FOR C & E SERIES
B60 Tilted Element™ 20°
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
20° titled version is designed for 16° - 24° deadrise angles
The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
| UPC Code | 723193660850 |
|---|---|
| Manufacturer Part Number | E66085 |
| Manufacturer | Raymarine |
