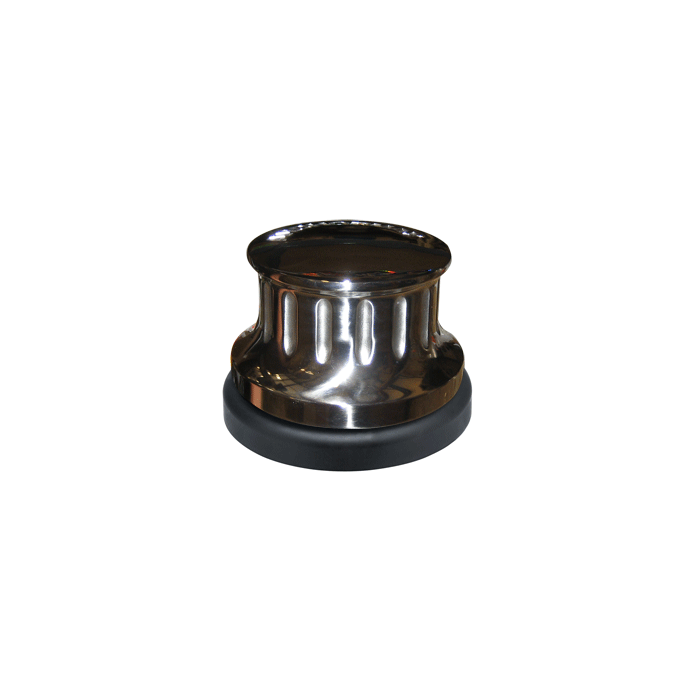

Maxwell Anchor Max Windlass P9510005

Name: Maxwell Anchor Max Windlass P9510005
Brand: Maxwell
SKU: JMS129480
Price: 1262.2 USD
Availability: InStock

Maxwell

Part # ANCHORMAX JMS SKU JMS129480 UPC 9414761059176

$1,262.20

5 in stock

Ships within 1–2 days

Need several, or a formal quote? Send us a message.

Ships from U.S. warehouses. Shipping cost is shown at checkout.
30-day returns on new, unused items in original packaging. Return policy
Not sure it fits? Call (832) 308-3163, Mon–Thu 9–5, Fri 9–2 Central.
Secure checkout with all major credit cards.

Government customer? This item is on our GSA Schedule. Sign in to the GSA Customer Area for contract pricing, PDF quotes and SmartPay checkout.

Description

ANCHORMAX™

FEATURES

Extremely high power to weight ratio
Compact, fully sealed gearbox
Vertically mounted, high efficiency, permanent magnet motor
Manufactured in durable anodised marine grade aluminum with chrome manganese bronze top parts
Precision cut gears
Minimal Intrusion below decks
Easy installation - no dismantling of the winch is necessary
Ideal for boats from 5 to 10 metres

Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings.

STANDARD EQUIPMENT

Footswitch

SPECIFICATIONS
Maximum Line Pull	386kg (850lb)
Speed @ nominal working load	24m/min (76ft per min) (80 amps with 100kg/220lb load)
Voltage	12v
Power	600w
Weight	8kg(17.6lb)
Maximum Boat Load	10m (33ft)
Max. Boat Weight	4 Tons
