MASTERVOLT BATTMAN LITE BATTERY MONITOR 12/24V 70405060

BattMan Lite Battery Monitor - 12/24V

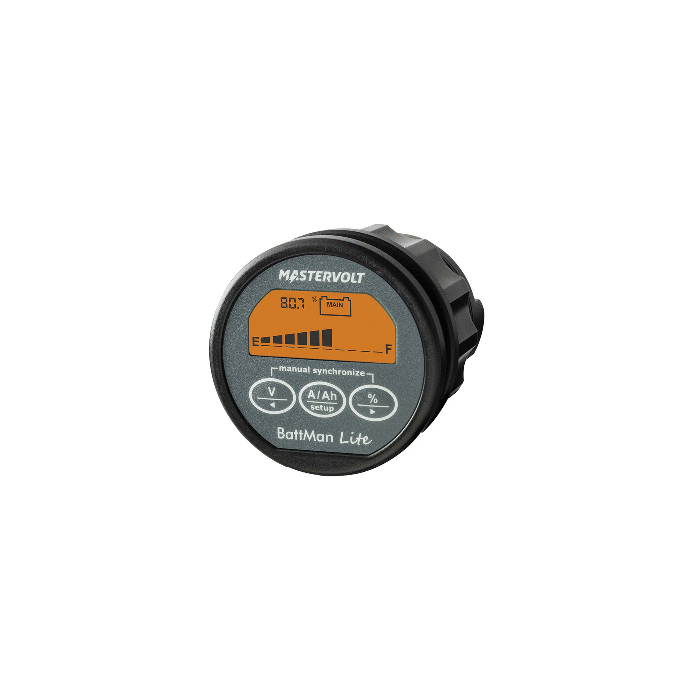

Battery monitor, 12/24 V DC with large, splash-proof display (IP65) and power bar.

An affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover, it will warn you when your battery bank is empty.

General Specifications:

• Number of battery outlets: 2; service (fully), starter (voltage)
• Display/read-out: Voltage, current, amp-hours, battery capacity in %
• Languages on display: Universal
• Built-in depth: 72.5 mm/2.9 inch
• Dimensions: Ø 64 mm, depth 79 mm
• Dimensions shunt, hxwxd: 87 x 45 x 35 mm/3.4 x 1.8 x 1.4 inch
• Weight: 0.15 kg/0.3 lb

Technical Specifications:

• Max. Ah capacity: 9999 Ah
• Supply voltage: 9-35 V
• Voltage range: 0-35 V
• Current consumption (backlight off): 8 mA/12 V,6 mA/24 V
• Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V
• Voltage resolution: 0.1 V
• Voltage accuracy: ± 0.3%
• Shunt specification: 500 A/50 mV (service set)
• Current measurement range: 0-500 A
• Current accuracy: ± 0,4 %
• Battery alarm contact: Yes, potential free
• Remaining time indication: No
• Historical data: No
• MasterBus compatible: No
• Connection cable (6-wire) necessary: Yes
• Modular cable necessary: No
