Marshal Excelsior Excela-Flo Auto Reg High Cap. MEC MEGR253H

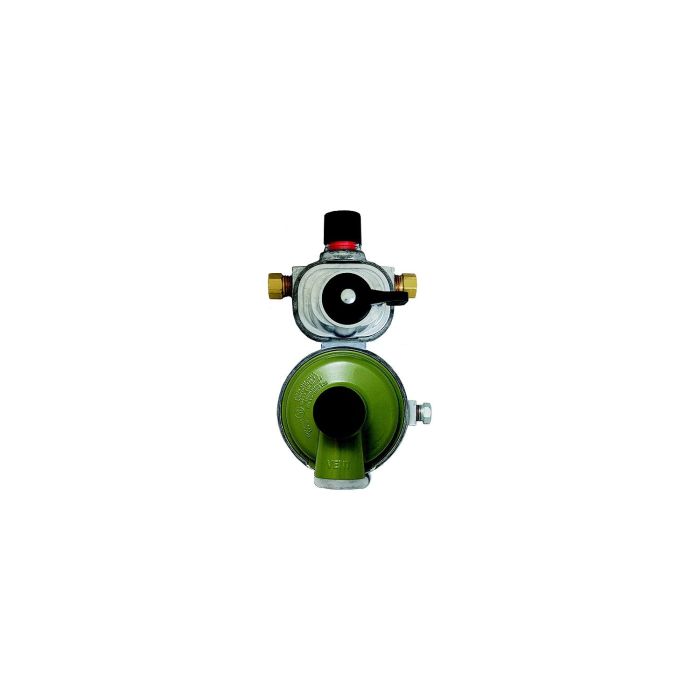

Marshal Excelsior Excela-Flo Auto Reg High Cap.

The Automatic Changeover Regulator automatically redirects LP gas vapor flow from an empty service cylinder to a reserve cylinder, without interruption of service. It features an easy to read green indicator which changes to red when the service cylinder needs to be refilled. Meets UL, RVIA and NFPA requirements.

• Type: Two Stage


• Max Inlet Pressure: 250 PSI


• Inlet Connection: 1/4" Female Inverted Flare


• Outlet Connection: 3/8" FNPT


• Exterior Finish: Raw Zinc / Powder Coat


• Diaphragm: Fabric Reinforced Molded with O-Ring Bonnet / Body Seal


• Diaphragm Type: Internal Relief - Spring Loaded


• Bonnet/ Body Material: Die Cast Zinc


• Listings: UL LISTED / UL 144


• Mounting Holes: 3-1/2" On Center


• Pressure Taps: 1/8" FNPT Plugged

Description: High Capacity
Pkg.: Bulk

SKU: MEC MEGR253H 277-MEGR253H
Manufacturer Part Number: MEGR-253H
Category: RV Appliances / LPG Regulators
