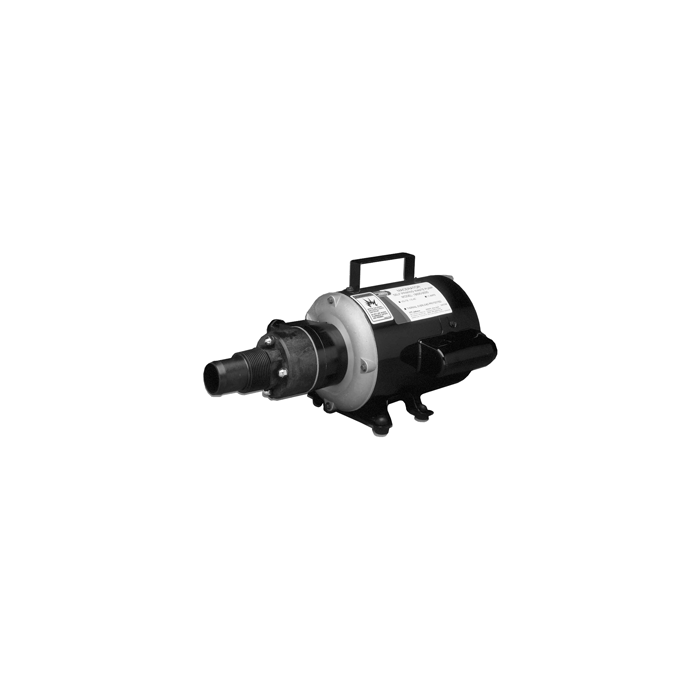

Jabsco Macerator Pump - 115V

ITT Jabsco 115V AC Macerator

The Jabsco AC macerator pump unit is the ideal answer to waste handling problems for marine, recreational vehicle and domestic uses. The macerator section grinds waste down to a particle size of 1/8" maximum so it can be pumped easily through a 1" hose discharge line. The pump is self-priming, permitting the unit to be mounted above or below the tank in a convenient location. For optimal efficiency, locate pump as close to the waste source as practical. Empties a 30 gallon holding tank in only 3 minutes. The waste pump will macerate and pump all waste and tissue normally found in marine waste systems. IT WILL NOT HANDLE HARD SOLID OBJECTS, SANITARY NAPKINS OR RAGS.

Specifications
ImpellerNitrile
MaceratorCast Bronze Cutter Plate reducesparticle size to 1/8" maximum
SealLip Type
Port TypeInlet - 1-1/2" External Pipe ThreadOutlet - 1" ID Hose Barb
Motor115 Vac, AC Induction TypeSingle Phase, 60 HzThermal Overload Protection
Weight7.7 (kg) 17 (lb)


Amps - Draw = NONE | Back Design = NONE | Gallons Per Hour = NONE | Gallons Per Minute = 10 | Inlet Size = NONE | Operation = NONE | Outlet Size = 1' | Quick Flush = NONE | Rinse Water = NONE | Suction Lift (ft.) = NONE | Volts = 115VAC

Category: Marine Plumbing & Ventilation | Marine Sanitation

Manufacturer Part Number: 18690-0000
