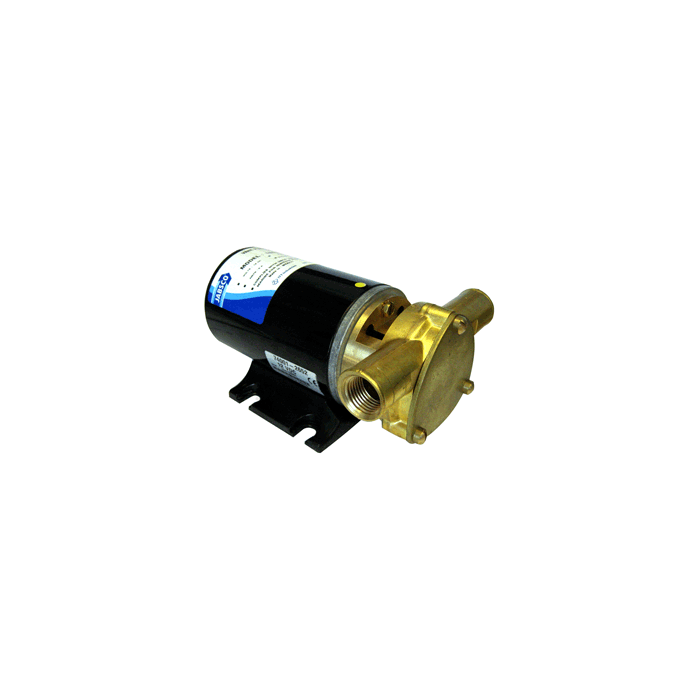

Jabsco Light Duty Vane Transfer Pump - 12v 18680-0920

Light Duty Vane Pump
Diesel Transfer Pump

Flow rate: 6 USgallons/min
Self-priming from dry up to 3ft

The Jabsco Reversible Rotary Vane Pump is ideal for transferring diesel fuel. It is self-priming to about three feet and can pump against a discharge head up to twenty feet.
Features:

• The pump head may be mounted at 90°

• increments on the motor to allow mounting as needed

• Meets USCG 183.410 & ISO8846 Marine (Ignition Protection)

Motor
Intermittant duty permanent magnet type

Port Type
1/2" NPT Female or 1" (25mm) Hose barb
