Description

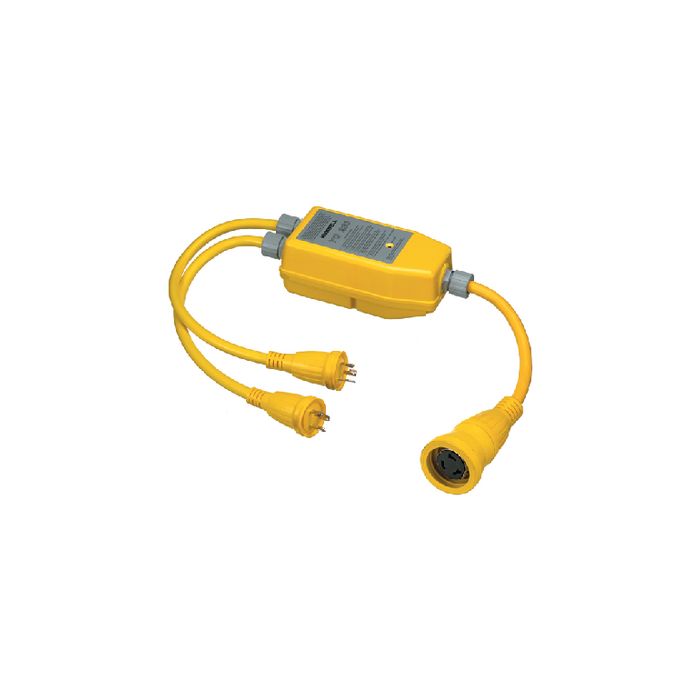

The Hubbell YQ230 Intelligent Y Adapter powers a 50 amp 125/250 volt boat from two 30 amp 125 volt receptacles at dockside. A 4-pole contactor breaks both hots and both neutrals to prevent a possible "live" plug when not engaged. It will only work with two 30A receptacles that are on different phases.
Features
- 4-pole contactor breaks both hots and both neutrals
- UV resistant housing
- Safety indicator light
- Internal cord clamps and sealing grommets
- Anti-fog-rain-humidity environmental seal
- 50 amp connector body mates with boat cord set and Hubbell connectors and plugs
- 30 amp plugs connect to 30 amp shore power
- Shuts off power if an improper wiring condition exists on the power center or if 1 plug is not fully engaged
- Senses polarity of the 30 amp receptacle on the dock and that the two 30 amp receptacles are from opposite phases
Specifications
- Color: Yellow
- Female (Boat): (1) 50A 125/250V
- Male (Dock): (2) 30A 125V
- Approvals: Not CSA Approved
- Manufacturer part number: YQ230
Specifications
- Brand
- Hubbell
- Manufacturer part #
- YQ230
- JMS SKU
- JMS125596
- UPC
- 783585831305
