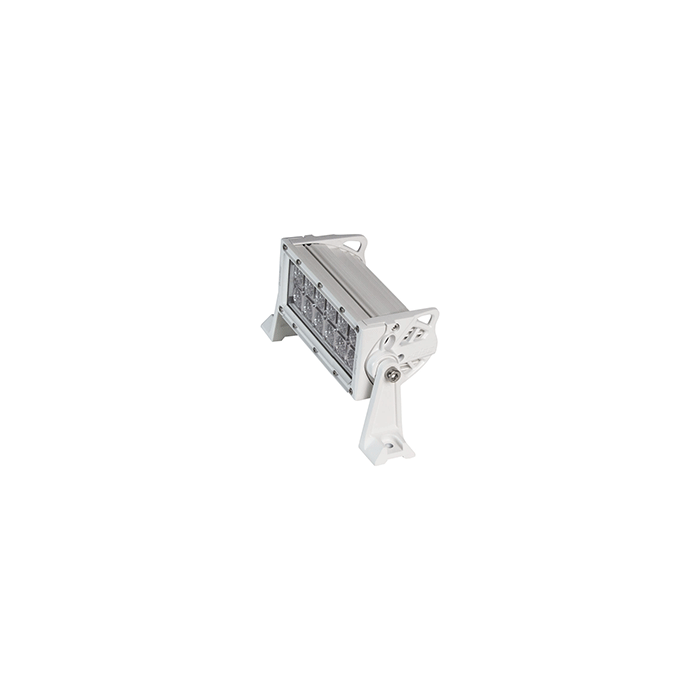

HEISE Dual Row Marine LED Light Bar - 8" HE-MDR8
$177.00
In stock
SKU
JMS303935
HEISE Dual Row Marine LED Light Bar - 8" HE-MDR8
Dual Row Marine LED Light Bar - 8"
SPECS
- Input Voltage: 10-30V DC
- Wattage: 36W (12-3W CREE LEDs)
- Raw Lumens: 2880
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90deg)/Spot(8deg)
CONSTRUCTION
- Housing Material: Die-cast Aluminum Housing
- Housing Color: White Coating with UV Inhibitors
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum
- Hole Dimensions: Brackets turned inward – 7.25in
- Brackets turned outward – 9.5in
- Mounting Bolt Drill – .25in
- Electronics: Integrated-Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: -40degC to +60degC
- Current Consumption: 1.9 amps at 13.8 volts
- IP Rating: IP68
- Protections: Reverse Polarity
Manufacturer Part Number | HE-MDR8 |
---|---|
Manufacturer | HEISE LED Lighting Systems |
