Dutton Lainson Hand Ratchet Winch DL1300A Plated DUT 14362

Name: Dutton Lainson Hand Ratchet Winch DL1300A Plated DUT 14362
Brand: DUTTON-LAINSON
SKU: JMS121797
Price: 106.12 USD
Availability: InStock

Part # 14362 JMS SKU JMS121797 UPC 085077143621

$106.12

In stock

Ships within 1–2 days

Need several, or a formal quote? Send us a message.

Ships from U.S. warehouses. Shipping cost is shown at checkout.
30-day returns on new, unused items in original packaging. Return policy
Not sure it fits? Call (832) 308-3163, Mon–Thu 9–5, Fri 9–2 Central.
Secure checkout with all major credit cards.

Government customer? This item is on our GSA Schedule. Sign in to the GSA Customer Area for contract pricing, PDF quotes and SmartPay checkout.

Description

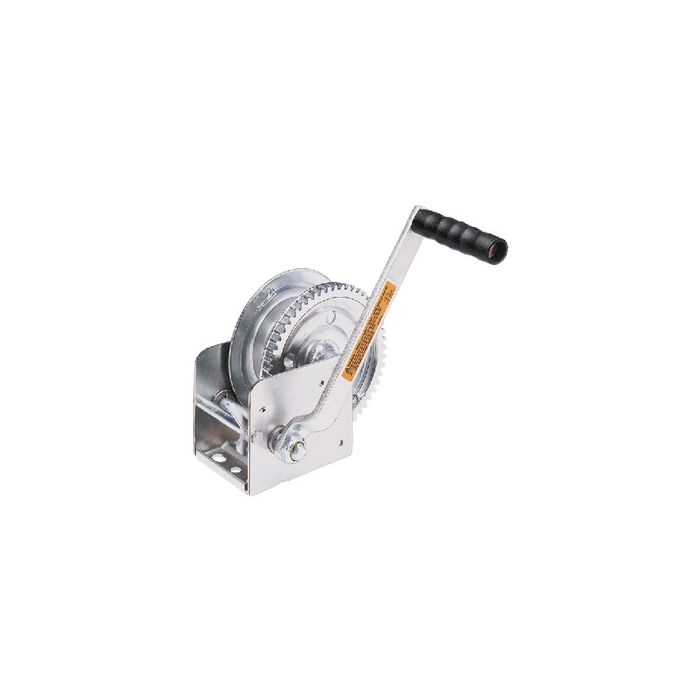

Dutton Lainson Hand Ratchet Winch DL1300A Plated DUT 14362

Features load matched gear ratios (for easier cranking), reinforced arc-welded reels, high carbon steel gears throughout, permanently lubricated bearings, base plates (fit BIA Standard mounting holes) and zinc plated finish. 2-Speed models allow for both high and low speed cranking from one side and quick attach handle. Cable clamp standard on 2-speed heavy duty models. Steel handles have molded grips. Models 400 through 2500 have holes in the reel for installation of web strap. Built for multipurpose hauling and lifting operations. They are not to be used as hoists for lifting, supporting, or transporting people, or for loads over areas where people could be present. 5 Year Warranty. Cable w/strap not included except where noted.

Max Load: 1300 lbs.
Max Advantage: 56
Gear Ratio: 4.4:1
Handle: 7"
Hub: 7/8"

SKU: DUT 14362
Manufacturer Part Number: 14362
Product Category: Trailering>Hand Winches & Parts
