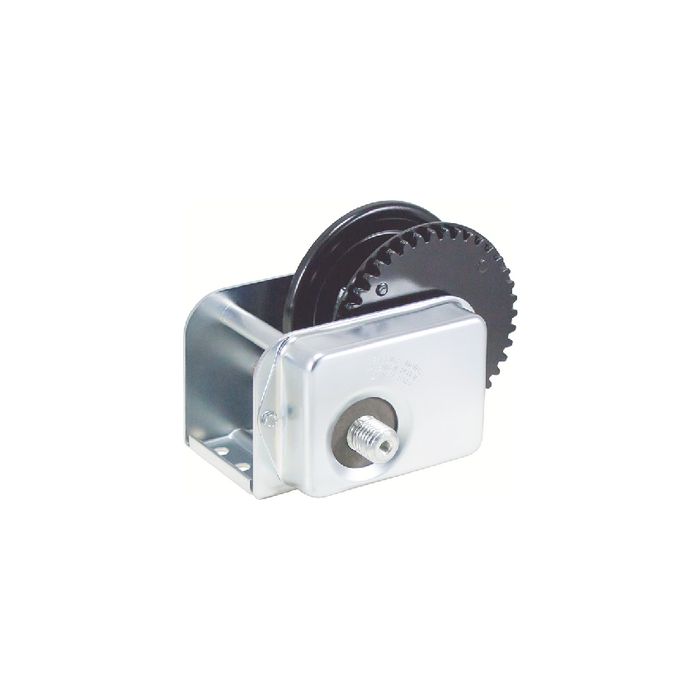

Dutton Lainson B Series Brake Winch Without Handle, 1200 lb, 15800

The Dutton Lainson B Series brake winch is a heavy duty hand winch rated for a 1200 lb maximum load and supplied without a handle. Its friction brake automatically applies a constant, positive holding action throughout raising and lowering, so the load stays in position whenever motion is stopped.

Features

• Heavy duty construction for longer life
• Friction brake applies a constant, positive holding action while raising and lowering
• All welded and copper brazed construction for greater strength
• Hardened gears throughout
• Gear cover encloses the braking mechanism
• Meets ASAE safety standard S-361-3
• Requires a minimum load for proper operation

Specifications

• Maximum load: 1200 lb
• Gear ratio: 4:1
• Cable size: 7/32 in x 46 ft
• Hub diameter: 2-1/2 in
• Handle: Not included
• Manufacturer part number: 15800
