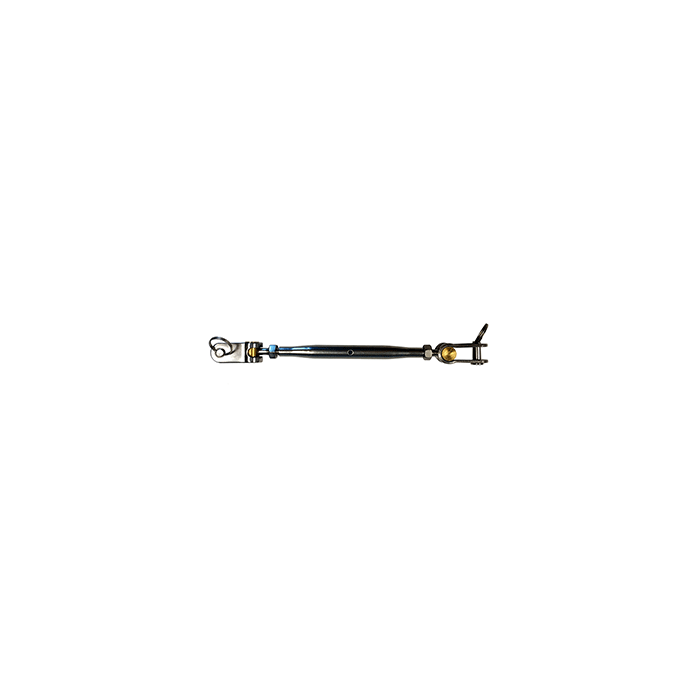

C. SHERMAN JOHNSON JAW/JAW TUBULAR TURNBUCKLE T-STYLE 05-110

Jaw/Jaw Tubular Turnbuckle T-Style 5/16-24 Thread

For those who prefer a traditional body turnbuckle. The forged silicon bronze body, coupled with our integral toggle jaw, provides positive locking and ease of adjustment.

Forged silicon bronze bodies with 316 stainless ends offer a great non-galling combination. Integral toggle jaw eliminates the need for a separate rigging toggle.

Specifications:

• Jaw with "T" Toggle Construction
• Machine swage
• Bronze body/ 316 stainless ends
• Wire size: 3/16"
• Breaking strength: 4,000 pounds
• Safe working load: 1,600 pounds
• Thread size: 5/16-24
• Pin to pin length: 9" (closed) 12-3/4" (open)
• Body length: 5-1/8"
• Pin diameter: 5/16"
• Weight: 8 ounces
