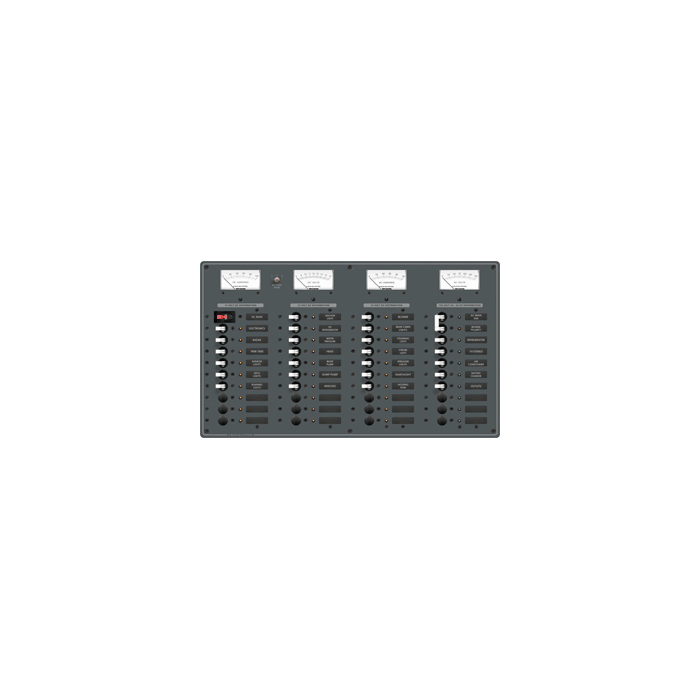

Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches) 8095
$2,135.28
In stock
SKU
JMS116478
Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches) 8095 is available to buy in increments of 1
BLUE SEA 8095 BREAKER PANEL 30-12V 10-120AC
AC Main +8 Positions / DC Main +29 Positions
PN: 8095
White Switches
AC Features
DC Features
Specifications:
Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
PN: 8095
White Switches
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
- 100 Amperes DC
AC Features
- Red reverse polarity indicating LED
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
- Owner uprgadeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter
Specifications:
- AC Positions: Source Selectors +8
- DC Positions: Main +29
- 120 Volts AC
- 12 Volts DC
- (1) 30A - (5) 15A AC Circuit Breakers
- (1) 100A - (20) 15A DC Circuit Breakers
Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
| UPC Code | 632085080952 |
|---|---|
| Manufacturer Part Number | 8095 |
| Manufacturer | Blue Sea |
