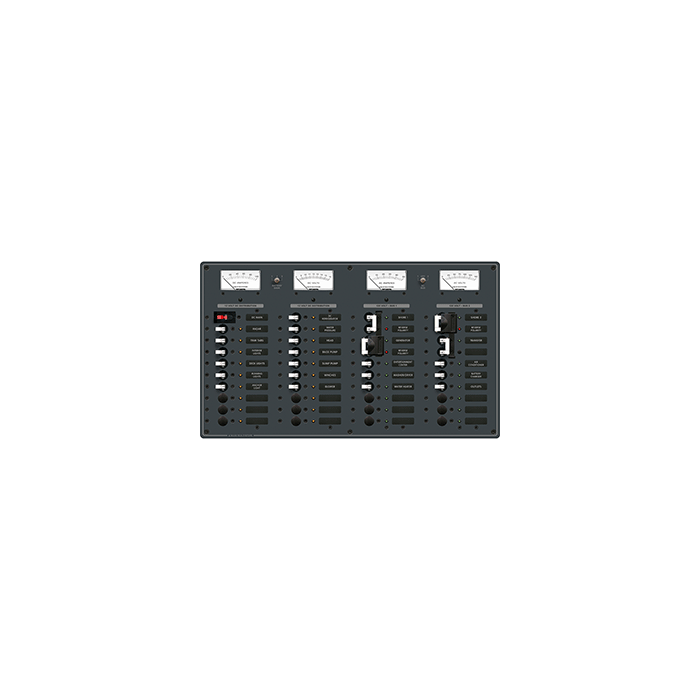

Blue Sea 8086 AC 3 Sources +12 Positions / DC Main +19 Position Toggle Circuit Breaker Panel (White Switches) 8086
$2,359.66
In stock
SKU
JMS176975
BLUE SEA 8086 BREAKER PANEL 20-12V 20-120AC
AC Main +12 Positions / DC Main +19 Positions
PN: 8086
White Switches
AC Features
DC Features
Specifications:
Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
PN: 8086
White Switches
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
- 100 Amperes DC
AC Features
- Two separate AC load groups with transfer switch to combine into one load group
- Switch allows Ammeter and Voltmeter to read either AC load group
- Reverse polarity indicators on both AC load groups
- Ready for installation of optional 4031 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
Specifications:
- AC Positions: Source Selectors +12
- DC Positions: Main +19
- 120 Volts AC
- 12 Volts DC
- (4) 30A - (6) 15A AC Circuit Breakers
- (1) 100A - (13) 15A DC Circuit Breakers
Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
| UPC Code | 632085080860 |
|---|---|
| Manufacturer Part Number | 8086 |
| Manufacturer | Blue Sea |
