Blue Sea 1502 ELCI Main 30A Double Pole Panel 1502
$391.61
In stock
SKU
JMS115927
Blue Sea 1502 ELCI Main 30A Double Pole Panel 1502 is available to buy in increments of 1

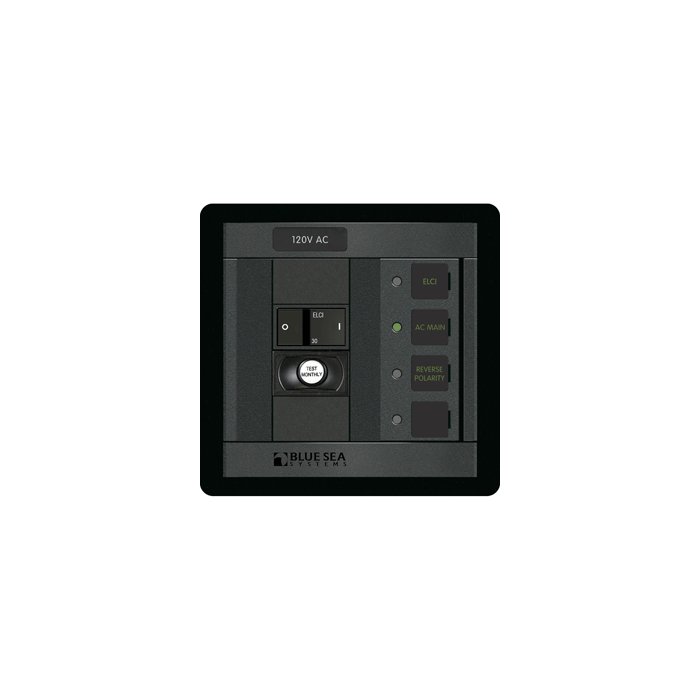

Blue Sea 1502 ELCI Main 30A Double Pole Panel
ELCI Main 30A Double Pole Panel
Features:
Specifications:
Includes:
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Features:
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- Red " Reverse Polarity" LED
- All circuit label positions are backlit
- "ON" indicating LEDs
Specifications:
- Positions:1
- Nominal Voltage:120V AC
- Height:4.75" (120.65mm)
- Width:4.88" (123.95mm)
- Depth:3.00" (76.2mm)
- Weight:1.10lb (0.5kg)
Includes:
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
UPC Code | 632085015022 |
---|---|
Manufacturer Part Number | 1502 |
Manufacturer | Blue Sea |
