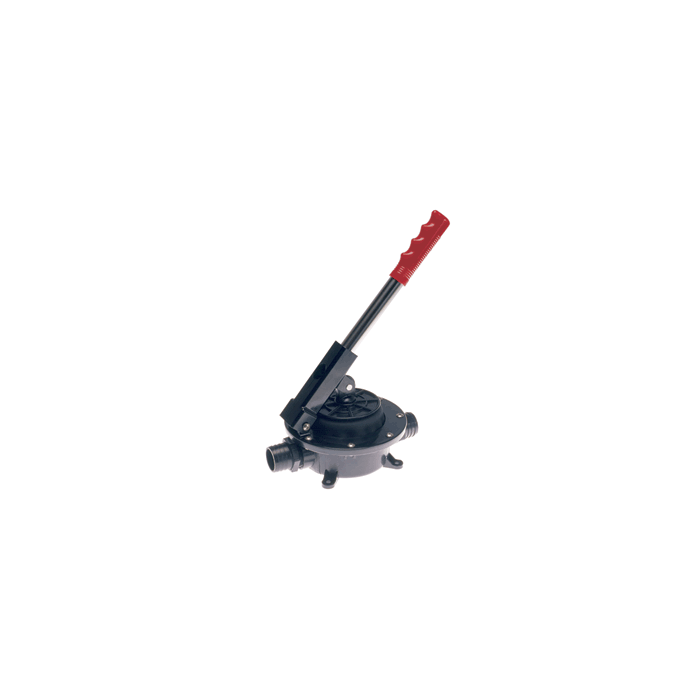

Beckson Diaphragm Pump - 16GPM 954DP2

Diaphragm Pump

Made of corrosion-proof marine plastic. Two position stainless steel handle and adjustable (Octagonal) frame permits up to 16 variations in stroke direction. Mounts vertically on bulkhead or horizontally on deck without the need for special brackets. Uses Beckson FH-1-1/2 or VCS-1-1/2 hose.

Dimensions with handle removed:

• Length: 9" (23 cm)

• Width: 6-1/4" (16 cm)

• Height: 4-1/2" (12 cm)

• Pumps: 16 gal. minute (60 L) (1 L per stroke)

Gallons Per Hour = 960 | Gallons Per Minute = 16 | Operation = NONE | Outlet Size = NONE | Power - Max Continuous (Amps) = NONE | Volts = NONE

Category: Marine Plumbing & Ventilation | Bilge Pumps
