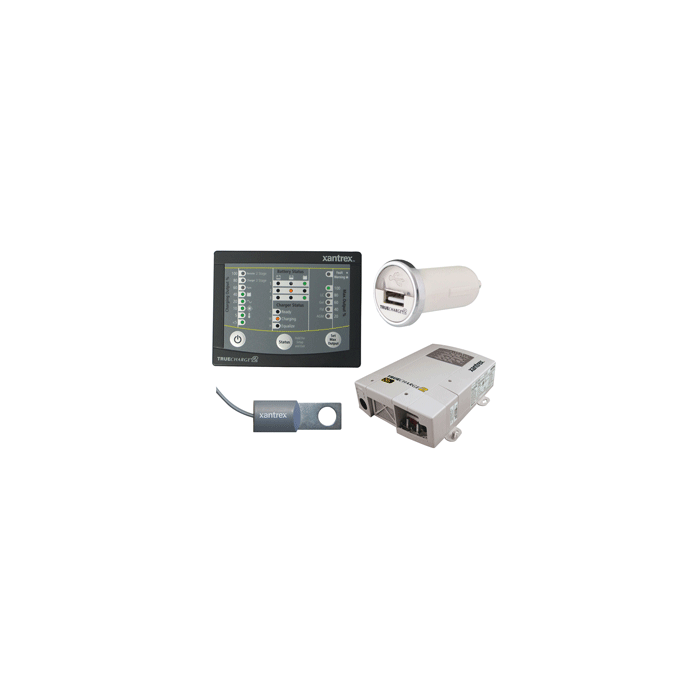

Xantrex TRUE<i>CHARGE</i>™2 20Amp Battery Charger - 12V-3 Bank w/Remote Panel, Temp Sensor & USB Charger Value Pack 804-1220-02-VPP

TRUECHARGE™2 20Amp Battery Charger - 12V-3 Bank w/Remote Panel, Temp Sensor & USB Charger Value Pack

TRUECHARGE™2 Battery Charger
Redesigned, High Performance, Worldwide Charging
Xantrex TRUECHARGE™2 Battery Chargers lead the industry with a small footprint and ultra-compact design.

Now with PARALLEL STACKING FEATURE
This feature allows two chargers to work together to combine the output current, achieving up to 40A for large battery banks.

Product Info
In addition to meeting global safety and regulatory standards, TRUECHARGE™2 Battery Chargers feature low electrical interference and superior, efficient, power factor corrected multistage charging. TRUECHARGE™2 Battery Chargers can be mounted virtually anywhere, given their unique drip-proof design. With certified ignition protection, even a gasoline engine room is an alternative for installation*. Trouble-free installation is ensured with easy-to-access AC and DC wiring compartments and reverse-polarity battery protection.

Performance Features

• 12-volt models

• Microprocessor-controlled, multistage charging algorithms

• Settings for two and three-stage charging

• Settings for flooded, gel, AGM or lead-calcium batteries

• Auto-ranging universal input voltage (90-265 Vac, 47-63 Hz) is also compatible with a generator or other low-quality power sources

• Temperature-compensated charging

• Power factor corrected for efficient charging

• Battery-equalization feature

• Ability to charge 'dead' batteries

• Battery temperature sensor available (Part #808-0232-01)

Protection Features

• Reverse battery polarity protection

• Drip-proof design

• Over and under-temperature protection

• DC over-voltage protection

• Battery overcharging protection

• Ignition protection

TRUECHARGE™2 Remote Panel
Advanced Remote for Monitoring and Full Control of Battery Charger Performance.

The TRUECHARGE™2 Remote Panel is designed for use with TRUECHARGE™2 Battery Chargers. This full-function remote allows you to monitor and control battery charger performance from a remote location, including features not accessible from the charger's onboard display. The TRUECHARGE™2 Remote Panel reads like a fuel gauge and displays critical information on charging of battery banks. It is very easy to install, read and operate, connecting with the battery charger through the included telephone cable.

Product Features

• Gives the user flexibility to set maximum charger output current

• Allows the charger to be powered on or placed into standby while AC power is connected

• Programs the charger for battery type and temperature

• Displays faults and warnings, basic battery level and settings

• Displays the current status of each battery or each battery bank

• Simple push buttons to change charger settings

• FCC Class B compliant

Product Includes

• TRUECHARGE™2 remote panel

• 7.6 m (25') 6-conductor crossed telephone cable (part# 31-6257-00)

• Mounting template and 1-½" NPT locknut for mounting

Battery Temperature Sensor (BTS)
Designed for use with TRUECHARGE™2 battery chargers.

The BTS mounts on a terminal post of a battery in a bank or on the side of a battery and measures its temperature. It sends precise information to the charger or charge controller, which automatically adjusts voltage to help ensure full battery charge depending on the ambient temperature of your battery installation.

TRUECHARGE™2 USB Charger
Charge your iPod®, iPhone®, BlackBerry® and more

The TRUECHARGE™2 USB Charger is compact, powerful, and conveniently converts power from your vehicle or boat to run USB-powered devices.

Simply insert the USB Charger into your vehicle or boat DC socket, and then plug your device into the USB port, the LED light will illuminate and you're ready to begin charging. This USB Charger combines innovative technology in a small footprint that provides 5-volt DC power to charge iPod®, iPhone®, BlackBerry® smartphone, MP3 players, or any other mobile device.
