WICHARD HR D SHACKLE 13/32" 11205
Special Price
$112.36
Regular Price
$115.80
In stock
SKU
JMS158884
WICHARD HR D SHACKLE 13/32" 11205 is available to buy in increments of 1

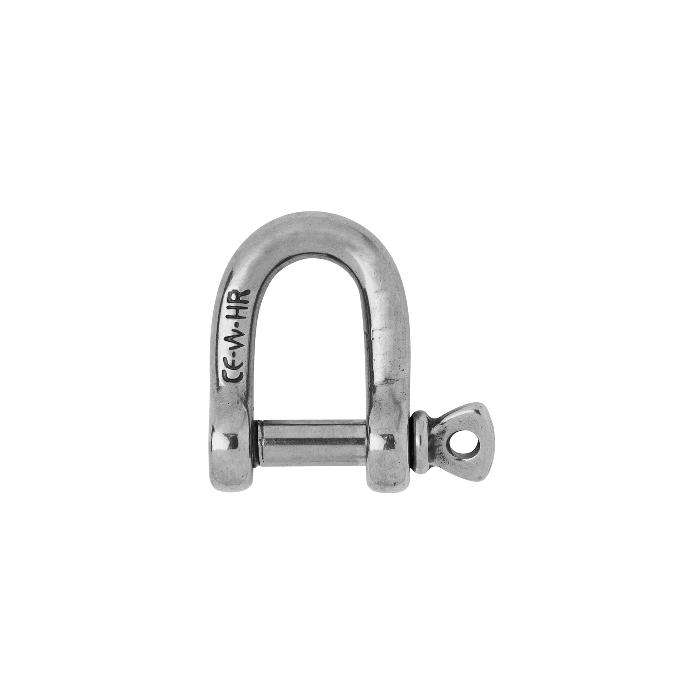

Wichard HR D Shackle - Diameter 25/64"
HR D Shackle - Diameter 25/64"
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head
- Do not use it for mooring applications
Specifications:
- Materials HR 17.4 PH stainless steel grade
- Working load (lb) 5820
- WLL (lb) 2640
- Breaking load (lb) 13220
- Weight (lb) 0.225
- A (inch) 1 19/64"
- B (inch) 25/32"
- D diameter (inch) 25/64"
| UPC Code | 768536112054 |
|---|---|
| Manufacturer Part Number | 11205 |
| Manufacturer | Wichard Marine |
