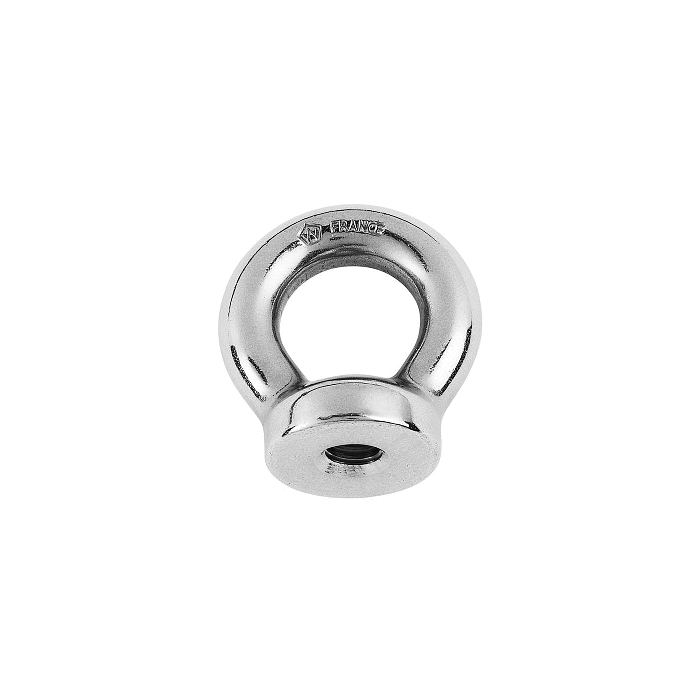

Wichard 8mm Eye Nut - 21/32" Diameter

8mm Eye Nut - 21/32" Diameter

Features:

• A complete range of single-piece forged products for fastenings applications
• Outstanding breaking loads
• Available in different sizes

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 6610 / (kg) 3000
• Weight: (lb) 0.112 / (g) 51

Dimensions:

• A: (inch) M8 x125 / (mm) M8 x125
• B: (inch) 43/64" / (mm) 17
• C: (inch) 1 27/64" / (mm) 36
• D: (inch) 5/16" / (mm) 8
• E: (inch) 55/64" / (mm) 22

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
