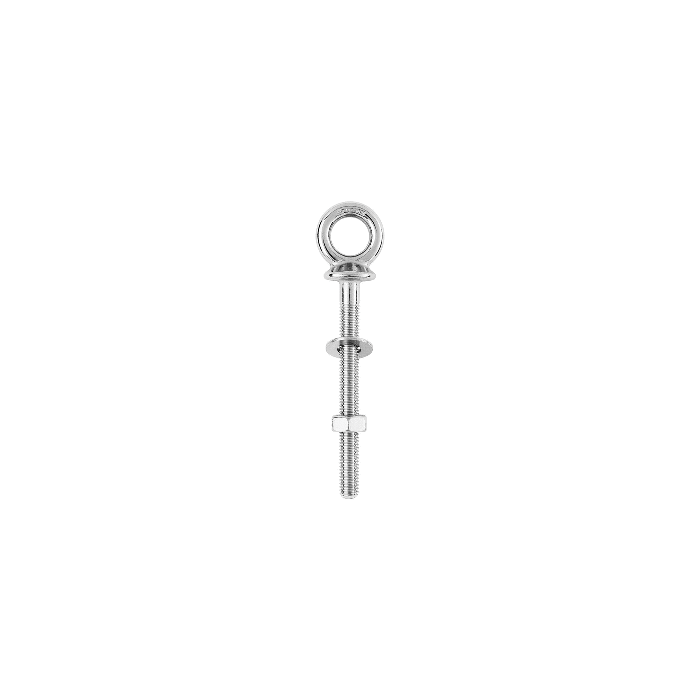

WICHARD 8MM EYE BOLT 9/16" DIAMETER / 3-5/32 LENGTH 06492

Eye Bolt - Diameter 9/16" - Length 3-5/32"

Features:

• A complete range of single piece forged products for fastenings applications
• Outstanding working and breaking loads
• Available in different sizes
• Max tightening torque: 18 Nm

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials 316L stainless steel grade
  • Working load (lb) 2110
  • Breaking load (lb) 3300
  • Weight (lb) 0.123
  • A (inch) M8 x125
  • B (inch) 35/64"
  • C (inch) 1 3/16"
  • D (inch) 15/64"
  • E (inch) 25/32"
  • F (inch) 3 5/32"
  • G (inch) 2 3/4"
