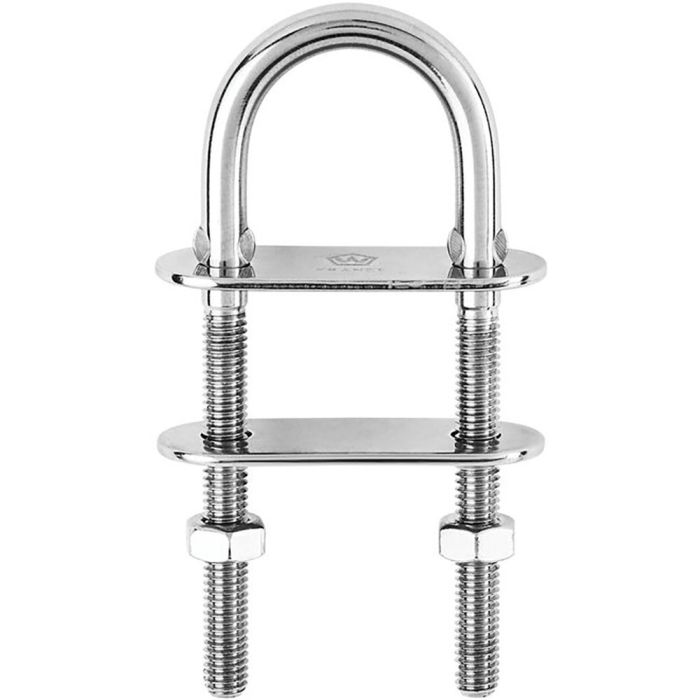

WICHARD 15/32 U-BOLT - L 4 11/32

WICHARD 15/32 U-BOLT - L 4 11/32 U-Bolt Pad Eye - 12mm Diameter - 15/32" - 110mm Length - 4-21/64" Features: Fully drop forged product with high-quality stainless steel Outstanding working and breaking loads For any kind of fastening applications (shrouds, lifelines, blocks...) Delivered with bolts and counter-plate Max tightening torque: 60 Nm Applications: Various fastening applications: shrouds, lifelines, blocks Specifications: Materials: 316L stainless steel grade Working load: (lb) 14100 / (kg) 6400 Breaking load: (lb) 22040 / (kg) 10000 Weight: (lb) 0.703 / (g) 319 Dimensions: A: (inch) 1 47/64" / (mm) 44 B: (inch) 1 11/32" / (mm) 34 C: (inch) 1 31/32" / (mm) 50 D diameter: (inch) 15/32" / (mm) 12 Length: (inch) 4 21/64" / (mm) 110 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual. This item is sold by JMSOnline.net, pro
