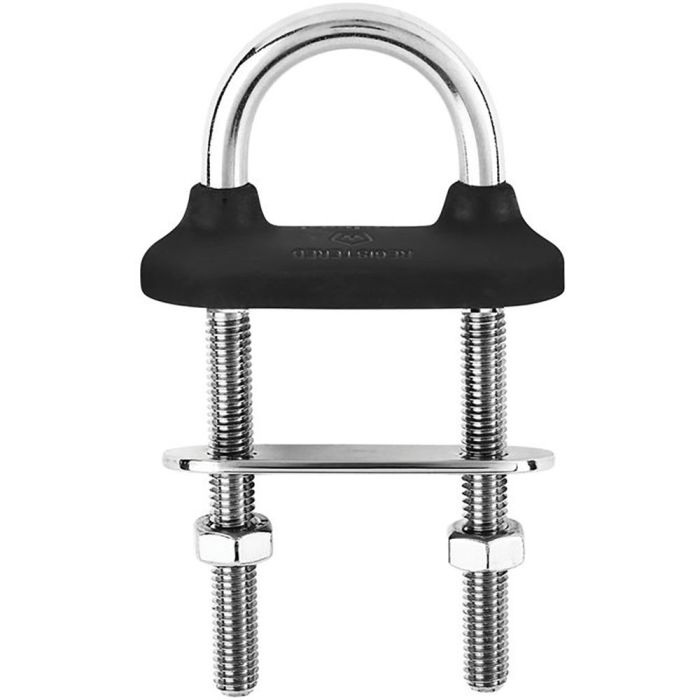

WICHARD 15/32 BLACK WATERPROOF U-BOLT -

WICHARD 15/32 BLACK WATERPROOF U-BOLT - Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8" Features: Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 60 nm Applications: Various fastening applications: shrouds, lifelines, blocks Specifications: Materials: 316L stainless steel grade Color: Black Working load: (lb) 14100 / (kg) 6400 Breaking load: (lb) 22040 / (kg) 10000 Weight: (lb) 0.827 / (g) 375 Dimensions: Length: (inch) 5 1/8" / (mm) 130 A: (inch) 1 47/64" / (mm) 44 B: (inch) 1 1/16" / (mm) 27 C: (inch) 2 3/4" / (mm) 70 D diameter: (inch) 15/32" / (mm) 12 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL =
