WICHARD 13/32 BLACK WATERPROOF U-BOLT-L

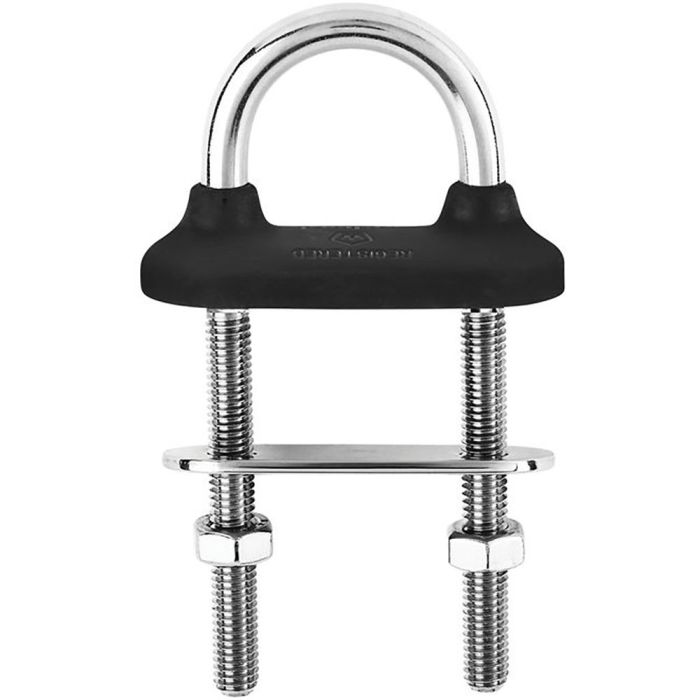

WICHARD 13/32 BLACK WATERPROOF U-BOLT-L Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64" Features: Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 36 nm Applications: Various fastening applications: shrouds, lifelines, blocks Specifications: Materials: 316L stainless steel grade Color: Black Working load: (lb) 7930 / (kg) 3600 Breaking load: (lb) 15430 / (kg) 7000 Weight: (lb) 0.525 / (g) 238 Dimensions: Length: (inch) 4 21/64" / (mm) 110 A: (inch) 1 37/64" / (mm) 40 B: (inch) 1 1/32" / (mm) 26 C: (inch) 2 9/16" / (mm) 65 D diameter: (inch) 25/64" / (mm) 10 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WL
