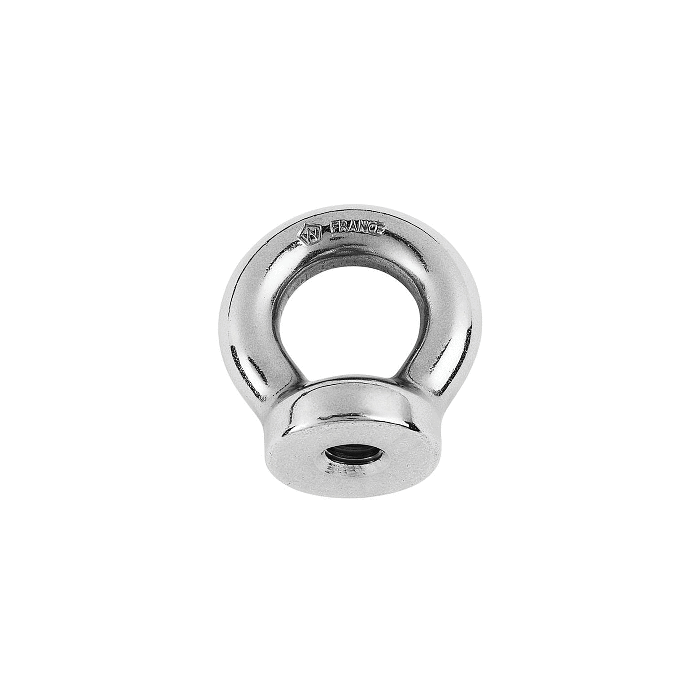

Wichard 12mm Eye Nut - Thread M14 x 200mm

12mm Eye Nut - Thread M14 x 200mm

Features:

• A complete range of single-piece forged products for fastenings applications
• Outstanding breaking loads
• Available in different sizes

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 19840 / (kg) 9000
• Weight: (lb) 0.377 / (g) 171

Dimensions:

• A: (mm) M14 x 200
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 2 13/64" / (mm) 56
• D: (inch) 15/32" / (mm) 12
• E: (inch) 1 11/32" / (mm) 34

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
