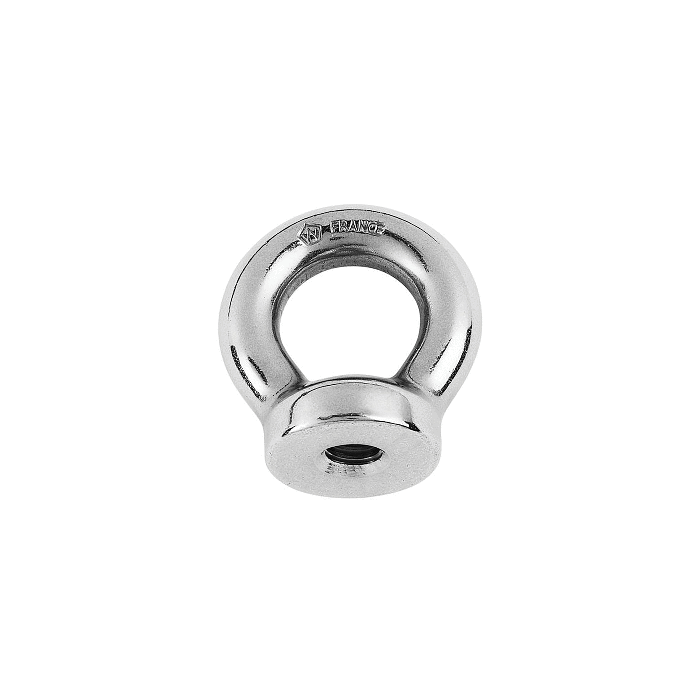

Wichard 10mm Eye Nut - Thread M12 x 175mm

10mm Eye Nut - Thread M12 x 175mm

Features:

• A complete range of single-piece forged products for fastenings applications
• Outstanding breaking loads
• Available in different sizes

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 11460 / (kg) 5200
• Weight: (lb) 0.209 / (g) 95

Dimensions:

• A: (mm) M12 x 175
• B: (inch) 55/64" / (mm) 22
• C: (inch) 1 13/16" / (mm) 46
• D: (inch) 25/64" / (mm) 10
• E: (inch) 1 7/64" / (mm) 28

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
