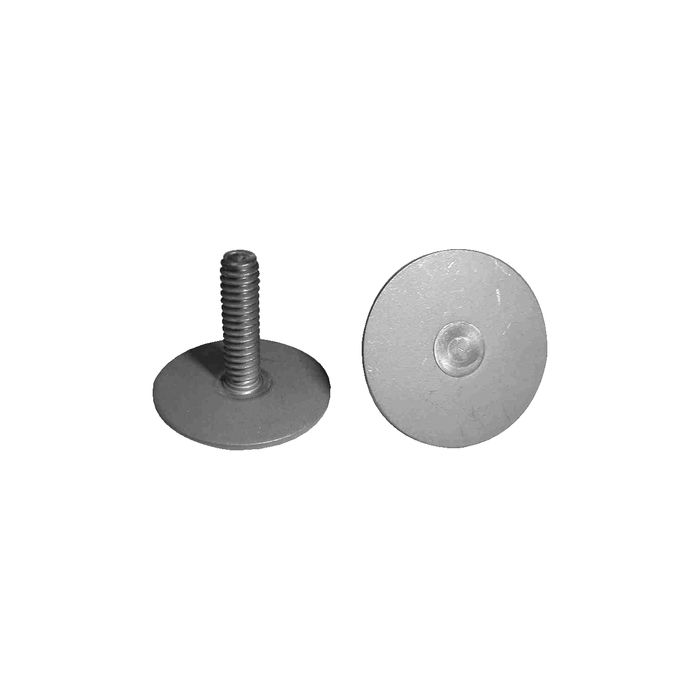

Weld Mount Stud1.25 Base1/4X20 0.75T 10Pk

Weld Mount Stud 1.25 Base1/4X20 0.75T 10Pk WEL-142012

PS62-832: Used for securing a wide range of wire clamps and other small components to composite surfaces. All Weld Mount Stud s can be bonded on the under or upper side of the base.
1024: Just like the 1420 Stud s above but with a smaller threaded Stud inserted into the base. These Stud s are ideal for mounting wire clamps and securing items which require a smaller Stud diameter
1420: Mounts to virtually any surface using our AT-4010 acrylic adhesive. This Is a structural part with Tensile Strength: 500 Lbs., Shear Strength: 650 lbs. Use for hanging panels, battery chargers, cabinets, through deck mounts, upholstery bolsters and many other uses.

Base: 1-1/4"
Thread: 1/4-20
Max Torque: 90 inch/lbs
Length: 3/4"

SKU: WEL-142012
Category: Electrical > Cable Ties & Mounts
