VOscope SoundStik Utrasonic Leak Detector SS-1000

SoundStik
All moving parts, gases, and liquids produce a broad range of sounds because of friction with their surroundings. The SoundStik is designed to listen to a non audible unique range of Ultra Sounds which are extremely uselful in the Automotive Industrial & Service Trades. Ultrasound technology allows smart, cost effective preventative maintenance and quick findings of potential or existing problems in major areas:

• Air/Vacuum Leaks

• Electrical Noise

• Friction Wear

• Seal/Fit Integrity

• Fluid Turbulence

Unaffected by Wind and Surrounding Noises
Ruggedized Handheld Portable unit
Simple to Use - Listen Directly to the Problem

TECHNICAL SPECIFICATIONS
Dimensions:
Width 2-½"
Depth 1"
Length: 5-¼"
Weight: 1 Ibs.
Housing: Chemical and oil resistant
Battery Life: Approx. 15 hrs.
Power Requirement: Standard 9V
Power Consumption: 30mA, typical
Frequency Response: 40kHz Centered
Circuitry: Solid State
Headphone: High Fidelity microbuds
Headphone Connector: 3.5m phone plug
Operating temp. Kange: 10 to +60 degrees Celsius

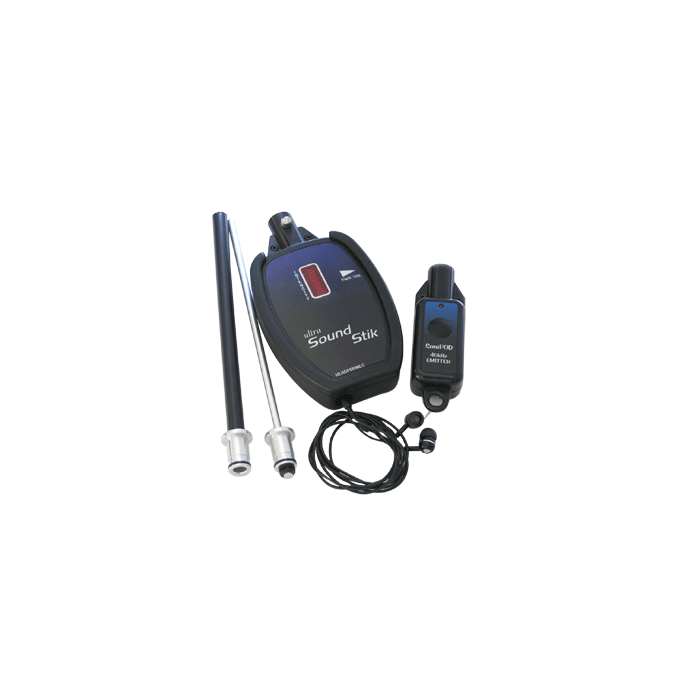

The SS-1000 kits contains: -

• SoundStik reciever

• SoniPod transmitter

• Contact rod

• Extension tube

• High fidelity earbuds

• Carry bag
