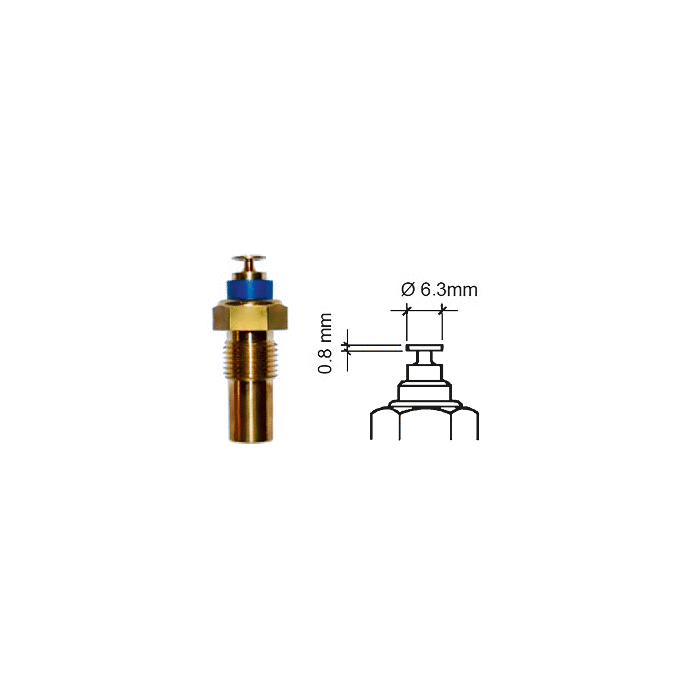

VERATRON COOLANT TEMPERATURE SENSOR - SINGLE POLE - SPADE 323-801-017-001N

Coolant Temperature Sensor - 40° to 120°C - M10 x 1 Tapered Short

Features:

• Measurement Range - 40°C - 120°C
• Category - Temperature Sensors
• Signal Analogue - 287.4 - 22.7 Ohm
• Operating Voltage - 6 - 24 V
• FunctionalityCoolant Temperature
• Communication - Analog
• Signal Output - 287.4 - 22.7 Ohm
• Sensor Signal - Common Ground
• Sensor Connector - AMP Male T-Model 6.3 X 0.8 mm
• Thread - M10 X 1 Male
• Warning Contact - None
• Connector Type - AMP Blade T-Model 6.3 X 0.8 mm

*Sold as an Individual
