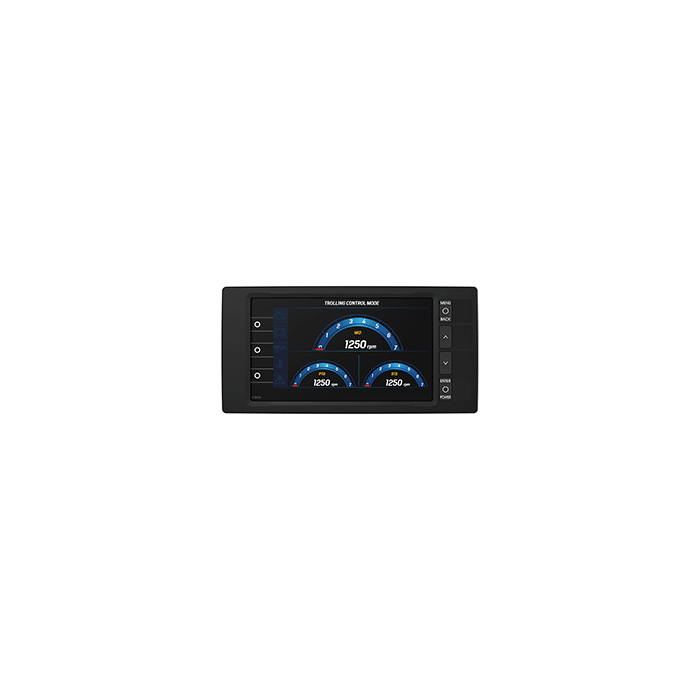

VDO OceanLink 7" NMEA 2000 Certified TFT Gateway - Black A2C1865330001

OceanLink 7" NMEA 2000 Certified TFT Gateway - Black

OceanLink 7" NMEA 2000 Certified TFT Gateway converts both analog and J1939 data into NMEA 2000 data.  The display features a daylight readable 24bit optically bondedtransmissive screen, 40 different customizable screens and support for up to 20 individual satellite gauges.

OceanLink Technical Information:

• 1x NMEA 2000® connector
• 1x J1939 and 4x analogue input
• 6x 0-400 ohm analog inputs
• 2x frequency inputs
• 3x 0-5V  inputs
• 2x 4-20mA inputs
• 2x RGB video inputs
• Operating temperature range -25 °C / +70 °C
• Optical bonded mineral glass lens
• Front & rear side protection rating IPX9
• Touch screen swipe technology
