Tekonsha ModuLiteHD Protector w/Integrated Circuit & Overload Protection & 5-Flat Connector f/Backup Light or Surge Brake Lockout Circuit 119177

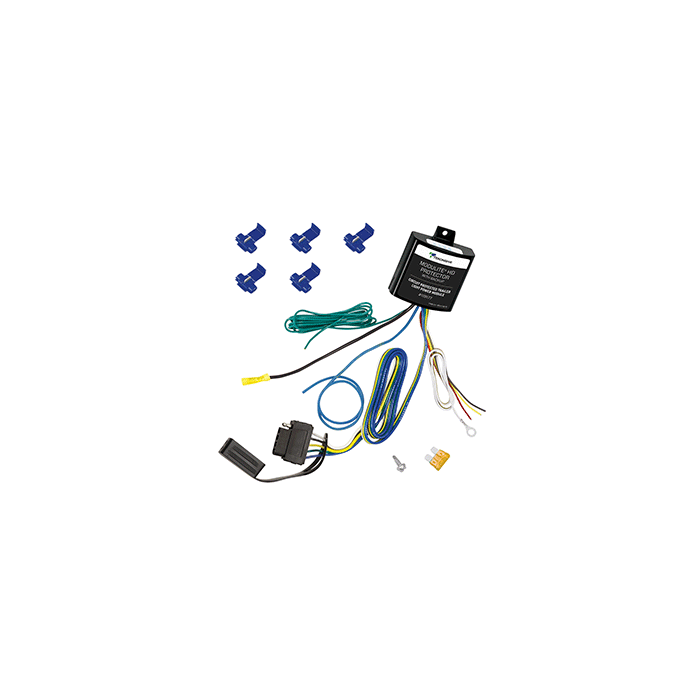

ModuLite® HD Protector with Integrated Circuit & Overload Protection & 5-Flat Connector for Backup Light or Surge Brake Lockout Circuit

Features:

• The unit is rated for up to 4.2amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit and 4.2 amps for Back-Up circuit
• Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on andoff
• Will work with either LED/Incandescent bulbs (vehicle & trailer)
• Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
• Designed not to send feedback thru the vehicle circuits
• The trailer brakes will override the hazard lamps when the brake is activated
• The taillight circuit has been upgraded to work with vehicles that use a pulse width modulation (PWM),
