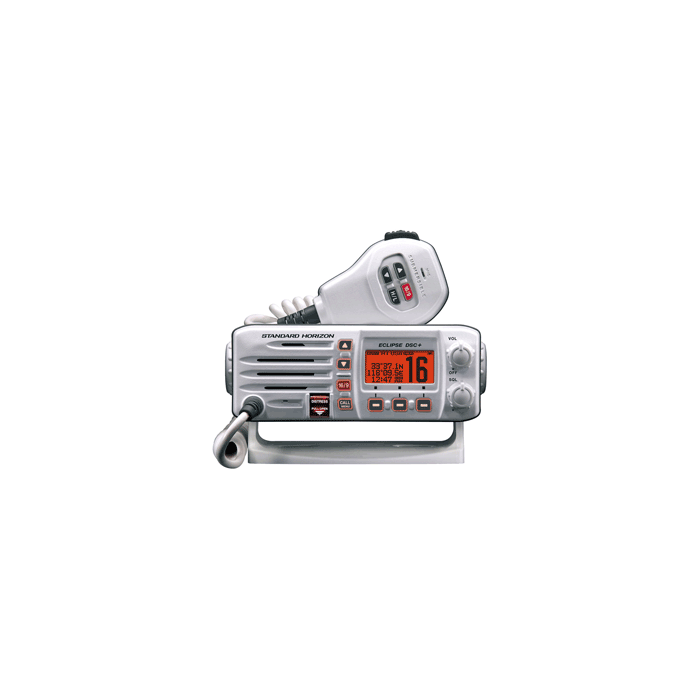

Standard Horizon GX1200W Eclipse DSC+ Ultra Compact Class D VHF - White GX1200W

Eclipse DSC+ GX1200 White - Fixed Mount Class D DSC VHF

The Eclipse DSC+ is an affordable ultra compact ITU Class D VHF radio designed with a sturdy die-cast chassis making this full functioning 25 Watt radio the perfect choice for serious power and sail boaters alike. The Eclipse DSC+ has been updated with user customizable soft keys for easy menu operation and features a microphone with channel UP/DOWN, 16/9 and H/L keys. The microphone also features Clear Voice Noise Reduction Technology eliminating unwanted background noise like engine and wind noise during transmission ensuring clear communications. The advanced design of the Eclipse DSC+ allows DSC calls to be received even when listening to other communications as it has a separate DSC receiver. Additional DSC features include, DISTRESS, Individual, Urgency, Safety, Position Report and Send, DSC test call and menu selection for Auto DSC channel switching.

Features:

• Affordable Ultra Compact Class D Fixed Mount VHF radio

• Replaces older Eclipse+ and Eclipse DSC Models

• Full dot matrix display

• User customizable soft keys for easy menu operation

• 16/9, H/L and channel up/down keys on the mic

• DSC Distress, Individual, Group, All Ships, Position Request, Position Request and DSC Test Call

• Auto DSC channel change selection

• Submersible IPX7 (3.3' or 1M for 30 minutes) front panel

• Time and GPS position information shown on display when GPS connected

• Programmable Scan, Priority Scan, and Dual Watch

• NOAA Weather Channels with Alert

• All USA, International and Canadian Marine Channels

• NMEA 0183 Input and Output

• Meets ITU-R M493-13 Class D DSC (Digital Selective Calling)

• Overall Dimension: 2.4"H x 6.1"W x 6.7"D

• Flush Mount Cutout: 2.0"H x 5.2"W

• 3 Year Waterproof Warranty

Channel Selection: Front panel keys or mic
Controls: Volume, squelch, spring loaded DSC distress cover, backlit keypad
Display Type: Backlit dot matrix display
Scanning Modes: Programmable Scan, Priority Scan and Dual Watch Weather Alert: Yes
Transmit Power: 25/1 Watt
NMEA Inputs: GLL, GGA, GNS, RMC
NMEA 0183 outputs: DSC and DSE
Current Draw: 5A/0.5A
Waterproof: Front panel meets IPX7, submersible 3.3' (1M) for 30 minutes
Warranty: 3 years including water damage, after warranty a $65 flat rate covers the repair.
