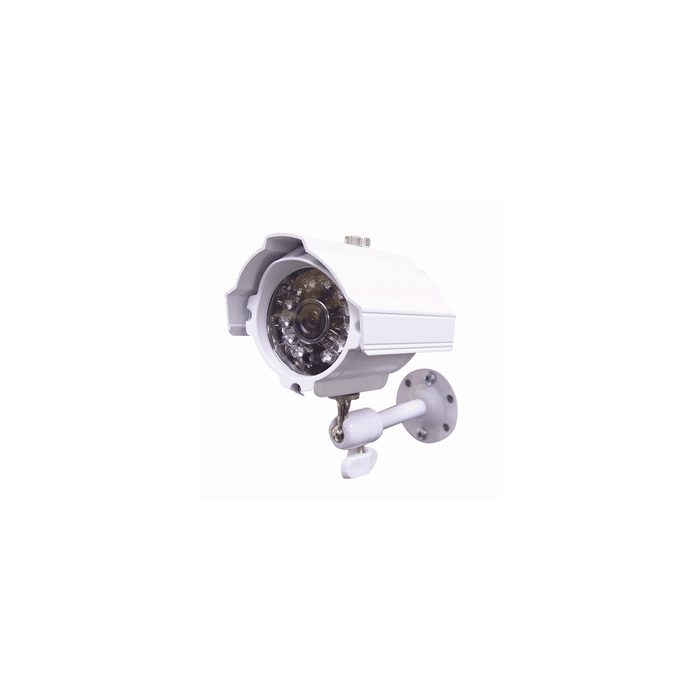

Speco Color Day/Night Bullet Marine Camera with IR LEDs CVC-627M

Color Day/Night Bullet Marine Camera with IR LEDs
(CVC-627M)

Day/Night Operation
12 built-in LEDs controlled by a CDS sensor allow this color camera to see a perfect b/w picture in the dark at distances up to 45*
Weatherproof/Waterproof
Can withstand full immersion in water and
stand up to any type of weather
Attractive white housing
Compatible with all plotters that accept composite video inputs
Stainless Steel white mount & screws will not rust

Horizontal Resolution	420 Lines
Min Illumination	0.01 lux (LED off), 0 lux (LED on)
Camera Type	Waterproof Color Day/Night
Image Sensor	1/4" Color CCD
Lens	2.9mm
Iris	Electronics Shutter
Effective Pixels	510 (H) x 492 (v) Pixels
TV Standard	NTSC
Sync Type	Internal
Scanning System	2:1 Interlace
Video Output	1 volt P-P into 75 ohms
Gamma Characteristics	.45 typ
S/N Ratio	48 dB
Back Lighting	Automatic
Gain Control	Automatic
Operating Temperature	14 degrees F to 120 degrees F
LED	12 LEDs controlled by CDS
Current Consumption	150 mA (LED off), 330 mA (LED on)
Power Requirements	12v DC Regulated power supply @ 500mA
Dimensions	2.75" Dia. x 3.65" (L)
Weight	12.5 oz.
