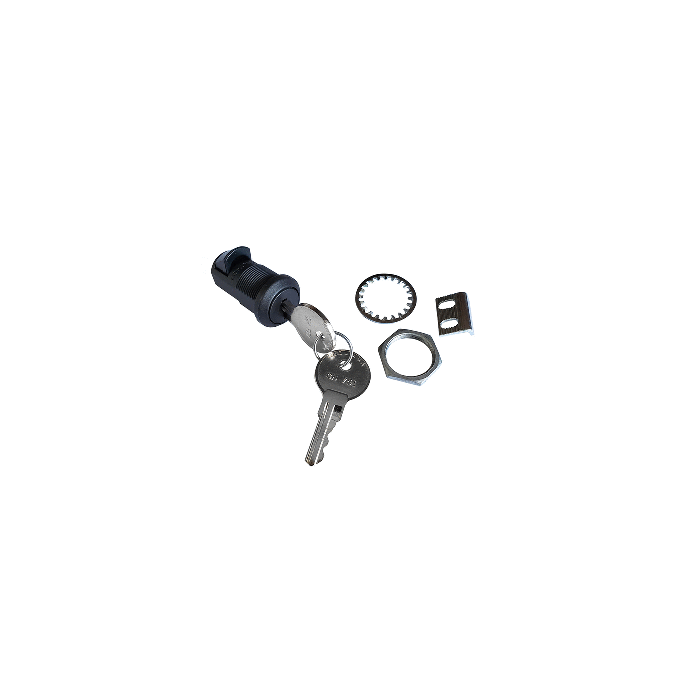

Southco Small Push-to-Close Latch - Locking 93-10-201-50

Small Push-to-Close Latch - Locking

200 Series latches provide 20 mm (.812") grip with max. door thickness of 9.5 mm 3.72"

Multiple actuation choices for a common latching mechanism make it easy for these easy-to-use latches to meet your personal preferences or application requirements.

Features:

• Maximum working load: Small: 330 N (75 lbf)
• Operating temperature range: -18ºC (0ºF) to 65ºC (150ºF)
• Flammability rating: UL94-HB
• Installation Notes: Maximum tightening torque on mounting nut: 7.9 N m (70 in lbf)
